Same model may have multiple batches, images only for reference.

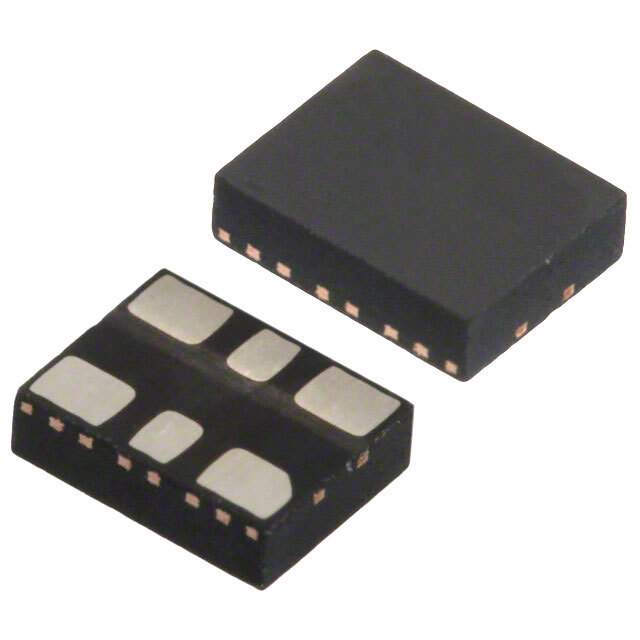

ASEMPC-48.000MHZ-LR-T Real Image
Same model may have multiple batches, images only for reference.

ASEMPC-48.000MHZ-LR-T

Part No ASEMPC-48.000MHZ-LR-T
Manufacturer Abracon LLC
Catalog Oscillators
Description MEMS OSC XO 48.0000MHZ CMOS SMD / 48 MHz XO (Standard) CMOS Oscillator 2.25V ~ 3.6V Enable/Disable 6-SMD, No Lead
Datasheet
ASEMPC-48.000MHZ-LR-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series ASEMP, Pure Silicon™
Package Tape & Reel
Base Resonator MEMS
Type XO (Standard)
Frequency 48 MHz
Function Enable/Disable
Output CMOS
Voltage - Supply 2.25V ~ 3.6V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 35mA
Mounting SMD (SMT)
Package / Case 6-SMD, No Lead
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.035" (0.90mm)
Current - Supply (Disable) (Max) 26mA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 535-9487-6,ASEMPC48000MHZLRT,535-9487-1,535-9487-2
Standard Package 1,000
Win Source Part Number 1229139-ASEMPC-48.000MHZ-LR-T
Ultra Librarian 3D Model Ultra Librarian ASEMPC-48.000MHZ-LR-T CAD Model

Description

The 1229139-ASEMPC-48.000MHZ-LR-T is a type of XO standard oscillator designed for use in various electronic devices.

  • Packaging: Tape & Reel (TR)
  • Height: 0.035" (0.90mm)
  • Standard Package: 1,000
  • Mounting Type: SMD (SMT)
  • Frequency: 48 MHz
  • Output: CMOS
  • Frequency Stability: ±25ppm
  • Current Supply (Max): 35mA
  • Current Supply (Disable) (Max): 26mA
  • Voltage Supply: 2.25V to 3.6V
  • Package/Case: 6-SMD, No Lead
  • Temperature Range: -40°C to 85°C
  • Dimension: 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • Manufacturer: Abracon LLC
