Same model may have multiple batches, images only for reference.

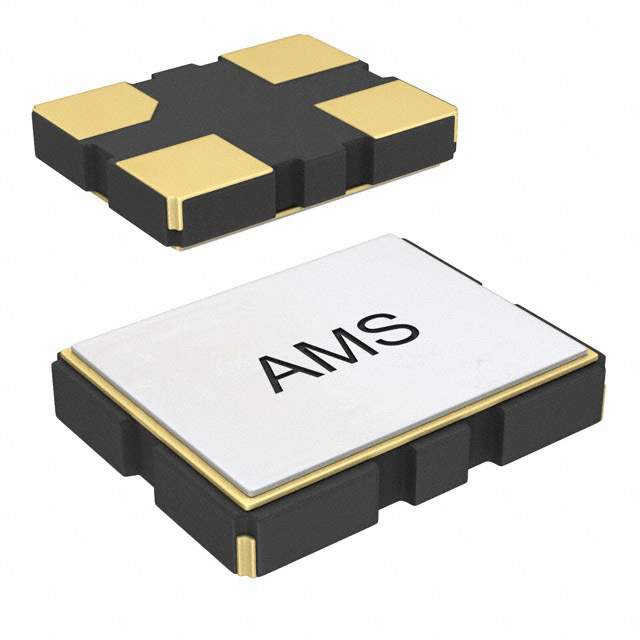

ASE-48.000MHZ-LC-T Real Image
Same model may have multiple batches, images only for reference.

ASE-48.000MHZ-LC-T

Part No ASE-48.000MHZ-LC-T
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC XO 48.0000MHZ CMOS SMD / 48 MHz XO (Standard) CMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Manufacturer Abracon LLC
Packaging Reel - TR
Base Resonator Crystal
Type XO (Standard)
Frequency 48 MHz
Function Enable/Disable
Output CMOS
Voltage - Supply 3.3V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 19mA
Mounting Surface Mount
Case / Package 4-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.047" (1.20mm)
Current - Supply (Disable) (Max) 10µA
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number 535-9576-2,ASE-48.000MHZ-L-C-T,535-9576-1,ASE48000MHZLCT,535-9576-6
Standard Package 1,000
Win Source Part Number 1328183-ASE-48.000MHZ-LC-T
Ultra Librarian 3D Model Ultra Librarian ASE-48.000MHZ-LC-T CAD Model

Description

This oscillator is manufactured by Abracon LLC and has a frequency of 48 MHz.

  • Manufacturer: Abracon LLC
  • Frequency: 48 MHz
  • Frequency Stability: ±50ppm
  • Output: CMOS
  • Oscillator Type: XO
  • Packaging: Reel-TR
  • Size / Dimension: 0.126 inches (length), 0.098 inches (width)
  • Height-Seated: 0.047 inches
  • Mounting: Surface Mount
  • Current Supply: 19mA
  • Current Supply (Disabled): 10μA
  • Voltage Supply: 3.3V
  • Operating Temperature: -40°C to 85°C
  • Case / Package: 4-SMD, no-lead
  • ECCN: EAR99
  • REACH: Unaffected
  • Standard Package: 1,000
  • Other Part Numbers: 535-9576-2, ASE-48.000MHZ-L-C-T, 535-9576-1, ASE48000MHZLCT, 535-9576-6
  • ROHS3: Compliant
