Same model may have multiple batches, images only for reference.

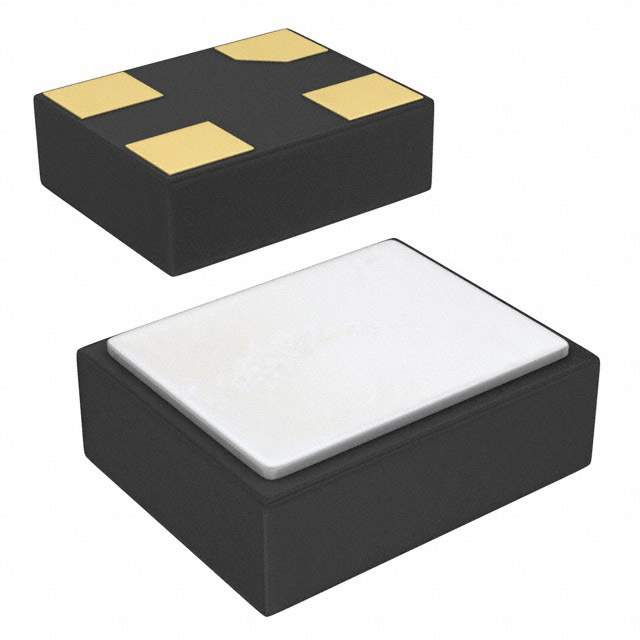

ASA1-45.250MHZ-L-T3 Real Image
Same model may have multiple batches, images only for reference.

ASA1-45.250MHZ-L-T3

Part No ASA1-45.250MHZ-L-T3
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC XO 45.2500MHZ HCMOS SMD / 45.25 MHz XO (Standard) HCMOS Oscillator 2.5V Enable/Disable 4-SMD, No Lead
Datasheet
ASA1-45.250MHZ-L-T3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series ASA
Package Tape & Reel (TR)
Base Resonator Crystal
Type XO (Standard)
Frequency 45.25 MHz
Function Enable/Disable
Output HCMOS
Voltage - Supply 2.5V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 10mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.031" (0.80mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 3,000
Win Source Part Number 1030344-ASA1-45.250MHZ-L-T3
Ultra Librarian 3D Model Ultra Librarian ASA1-45.250MHZ-L-T3 CAD Model

Description

The Abracon LLC Crystal Oscillator is a highly efficient electronic component that is used to generate high-frequency signals.

  • Package: Tape and Reel
  • Height: 0.031 inches
  • Frequency: 45.25 MHz
  • Operating Temperature: -40°C to 85°C
  • Popularity: Medium
  • Demand: High
