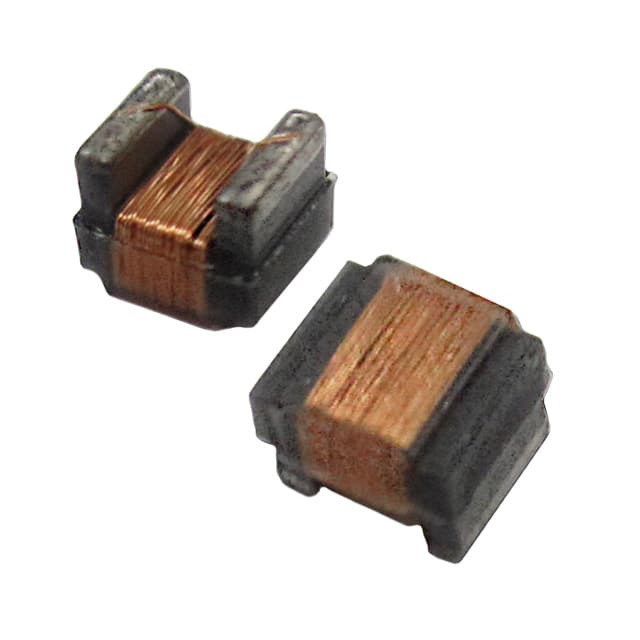

AISC-0805-R47J-T Abracon LLC
Same model may have multiple batches, images only for reference.

AISC-0805-R47J-T

Part No AISC-0805-R47J-T
Manufacturer Abracon LLC
Catalog Fixed Inductors
Description FIXED IND 470NH 250MA 1.72OHM SM / 470 nH Unshielded Drum Core, Wirewound Inductor 250 mA 1.72Ohm Max 0805 (2012 Metric)
Datasheet
AISC-0805-R47J-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Abracon LLC
Series AISC-0805
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ceramic
Inductance 470 nH
Tolerance ±5%
Current Rating (Amps) 250 mA
Shielding Unshielded
DC Resistance (DCR) 1.72Ohm Max
Q @ Freq 33 @ 100MHz
Frequency - Self Resonant 375MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 50 MHz
Mounting SMD (SMT)
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Dimension 0.090" L x 0.068" W (2.29mm x 1.73mm)
Height - Seated (Max) 0.061" (1.55mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names AISC0805R47JT,535-10509-6,535-10509-1,535-10509-2
Standard Package 2,000
Win Source Part Number 996631-AISC-0805-R47J-T
Ultra Librarian 3D Model Ultra Librarian AISC-0805-R47J-T CAD Model

Description

The AISC-0805-R47J-T is a wirewound, ceramic core inductor that is unshielded and has a tolerance of ±5%.

  • Shielding: unshielded
  • Tolerance: ±5%
  • Inductance: 470 nH
  • DC Resistance: 1.72 Ohm Max
  • Package/Case Size: 0805 (2012 Metric)
  • Mounting Type: SMD (SMT)
  • Current: 250 mA
  • Q @ Freq: 33 @ 100MHz
  • Frequency Self-Resonant: 375MHz
  • Temperature Range: -40°C to 125°C
  • Dimensions: 0.090" L x 0.068" W (2.29mm x 1.73mm)
  • Supplier: Abracon LLC
