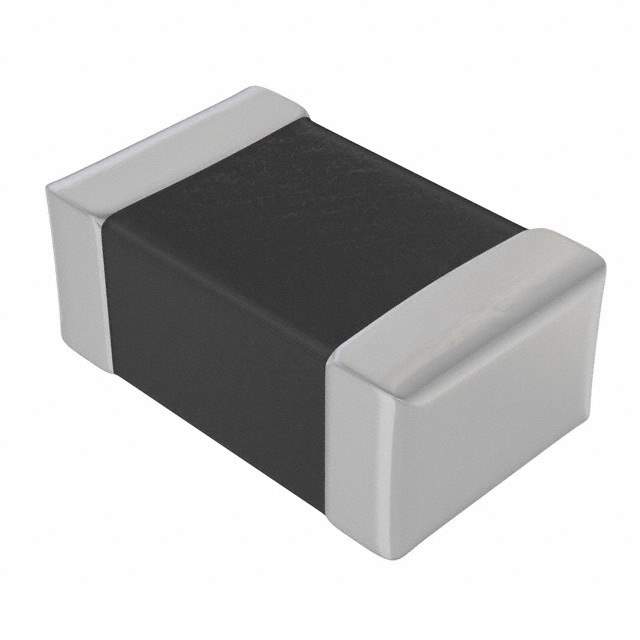

Same model may have multiple batches, images only for reference.

AIML-0805-R39K-T

Name: AIML-0805-R39K-T
Brand: Abracon LLC
SKU: 1343878
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	AIML-0805-R39K-T
Manufacturer	Abracon LLC
Catalog	Fixed Inductors
Description	FIXED IND 390NH 200MA 650MOHM SM / 390 nH Shielded Multilayer Inductor 200 mA 650mOhm Max 0805 (2012 Metric)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Abracon LLC
Series	AIML-0805
Package	Tape & Reel
Type	Multilayer
Material - Core	Ferrite
Inductance	390 nH
Tolerance	±10%
Current Rating (Amps)	200 mA
Shielding	Shielded
DC Resistance (DCR)	650mOhm Max
Q @ Freq	25 @ 25MHz
Frequency - Self Resonant	135MHz
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	25 MHz
Mounting Type	Surface Mount
Package / Case	0805 (2012 Metric)
Supplier Device Package	0805 (2012 Metric)
Size / Dimension	0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max)	0.041" (1.05mm)
Standard Package	4,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1343878-AIML-0805-R39K-T
Ultra Librarian 3D Model	Ultra Librarian AIML-0805-R39K-T CAD Model

Alternative Products

Description

The 1343878-AIML-0805-R39K-T is a fixed inductor from the AIML-0805 series of Abracon LLC.

Shielding: Shielded
Packaging: Tape & Reel
Inductance: 390 nH
Tolerance: ±10%
DC Resistance (DCR): 650mOhm Max
Q @ Freq: 25 @ 25MHz
Frequency Self-Resonant: 135MHz
Current Rating: 200 mA
Temperature Range: -55°C ~ 125°C
Mounting Type: Surface Mount
Core Material: Ferrite
REACH: Unaffected
Applications: Power Supplies, DC-DC Converters, Filters
