Same model may have multiple batches, images only for reference.

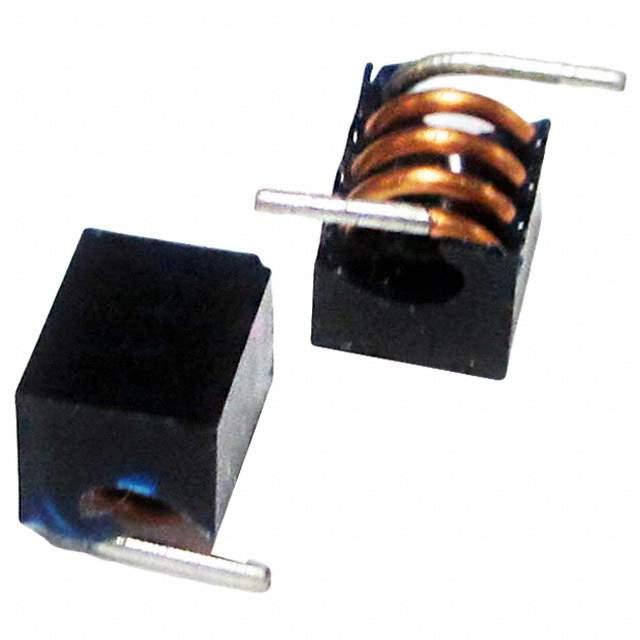

AIAC-1812-47NJ-T Real Image
Same model may have multiple batches, images only for reference.

AIAC-1812-47NJ-T

Part No AIAC-1812-47NJ-T
Manufacturer Abracon LLC
Catalog Fixed Inductors
Description Inductor RF Wirewound 0.047uH 5% 150MHz 100Q-Factor Air 2.8A 0.0069Ohm DCR T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Case / Package Nonstandard
Case Code (Imperial) 1812
Case Code (Metric) 4532
Composition Wirewound
Core Material Air
Current Rating 2.8 A
DC Resistance (DCR) 6.9 mΩ
Height 4.2 mm
Height - Seated (Max) 3.7084 mm
Inductance 47 nH
Lead Pitch 4.7 mm
Length 4.699 mm
Max DC Current 2.8 A
Max Operating Temperature 125 °C
Min Operating Temperature -40 °C
Mount Surface Mount
Q Factor 100
RoHS Compliant
Schedule B 8504100000, 8504500000
Self Resonant Frequency 2.1 GHz
Shielding Unshielded
Termination SMD/SMT
Test Frequency 150 MHz
Tolerance 5 %
Weight 26.988746 mg
Width 3.5052 mm
Win Source Part Number 1177853-AIAC-1812-47NJ-T
Categories Fixed Inductors
Manufacturer Abracon LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian AIAC-1812-47NJ-T CAD Model

Description

The Abracon LLC 1031205 is a wirewound fixed inductor with a 47 nH inductance.

  • Inductance: 47 nH
  • DC Resistance: 6.9 mΩ
  • Current Rating: 2.8 A
  • Tolerance: 5%
  • Self-Resonant Frequency: 2.1 GHz
  • Core Material: Air
  • Q Factor: 100
  • Case/Package: Nonstandard
  • Mounting: Surface mount
  • RoHS Compliant: Yes
  • Minimum Operating Temperature: -40 °C
  • Maximum Operating Temperature: 125 °C
  • Category: Fixed inductors
  • Popularity: Medium
