Same model may have multiple batches, images only for reference.

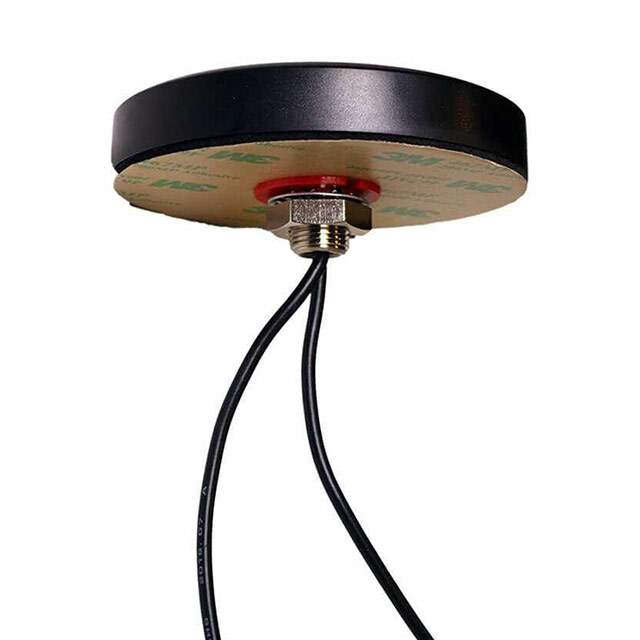

AEACBK081014-M698 Real Image
Same model may have multiple batches, images only for reference.

AEACBK081014-M698

Part No AEACBK081014-M698
Manufacturer Abracon LLC
Catalog RF Antennas
Description RF ANT 2X2 4G/LTE SCRW MNT MIMO / 829MHz, 2.2GHz 4G, LTE Dome RF Antenna 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz 2dBi, 2.5dBi Screw-Mount Screw Mount
Datasheet
AEACBK081014-M698 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Antennas
Mfr Abracon LLC
Series AEAC
Package Bulk
RF Family/Standard Cellular
Frequency Group UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz)
Frequency (Center/Band) 829MHz, 2.2GHz
Frequency Range 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz
Antenna Type Dome
Number of Bands 2
VSWR 3
Gain 2dBi, 2.5dBi
Termination Screw-Mount
Ingress Protection IP67
Mounting Type Screw Mount
Height (Max) 0.575" (14.60mm)
Applications 4G, LTE
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8529.10.9100
Other Names 535-14691
Standard Package 50
Win Source Part Number 959218-AEACBK081014-M698
Ultra Librarian 3D Model Ultra Librarian AEACBK081014-M698 CAD Model

Description

The AEACBK081014-M698 from Abracon LLC is a high-quality RF antenna suitable for use in 4G and LTE applications.

  • Frequency Range: 698MHz to 960MHz and 1.71GHz to 2.69GHz
  • Suitable for: Use in UHF frequency groups
  • VSWR: 3
  • Gain: 2dBi and 2.5dBi
  • Packaging: Bulk
  • Ingress Protection Rating: IP67
  • Mount Type: Screw-mount
  • Installation: Designed for easy installation
