Same model may have multiple batches, images only for reference.

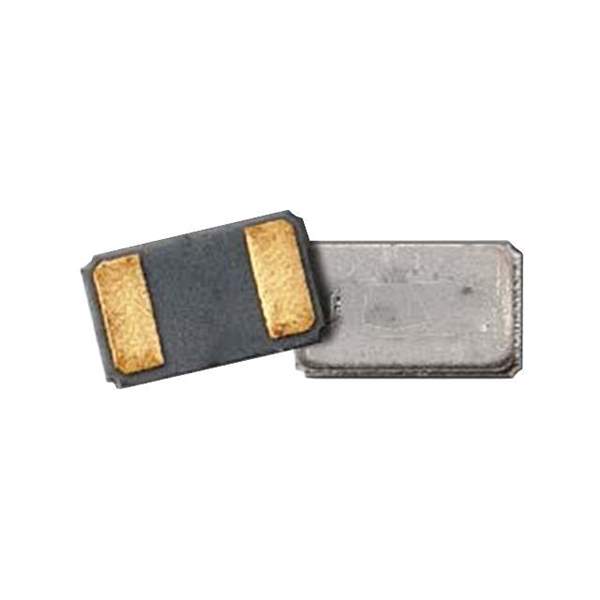

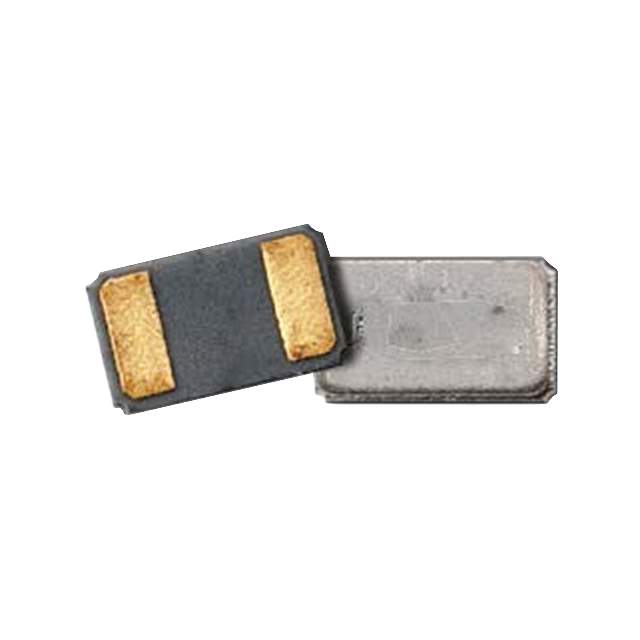

ABS06W-32.768KHZ-K-2-T Real Image
Same model may have multiple batches, images only for reference.

ABS06W-32.768KHZ-K-2-T

Part No ABS06W-32.768KHZ-K-2-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 32.7680KHZ 3PF SMD / 32.768 kHz ±20ppm Crystal 3pF 100 kOhms 2-SMD, No Lead
Datasheet
ABS06W-32.768KHZ-K-2-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr Abracon LLC
Series ABS06W
Package Tape & Reel
Type kHz Crystal (Tuning Fork)
Frequency 32.768 kHz
Frequency Tolerance ±20ppm
Load Capacitance 3pF
ESR (Equivalent Series Resistance) 100 kOhms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 2-SMD, No Lead
Size / Dimension 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height - Seated (Max) 0.024" (0.60mm)
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0010
Win Source Part Number 1349389-ABS06W-32.768KHZ-K-2-T
Ultra Librarian 3D Model Ultra Librarian ABS06W-32.768KHZ-K-2-T CAD Model

Description

The ABS06W series is a kHz Crystal (Tuning Fork) crystal that is designed for use in various applications.

  • Package / Case: 2-SMD, No Lead
  • Size / Dimension: 0.079" L x 0.047" W (2.00mm x 1.20mm)
  • Height - Seated (Max): 0.024" (0.60mm)
  • Frequency: 32.768 kHz
  • Frequency Tolerance: ±20ppm
  • ESR (Equivalent Series Resistance): 100 kOhms
  • Load Capacitance: 3pF
  • Operating Temperature: -40°C ~ 125°C
