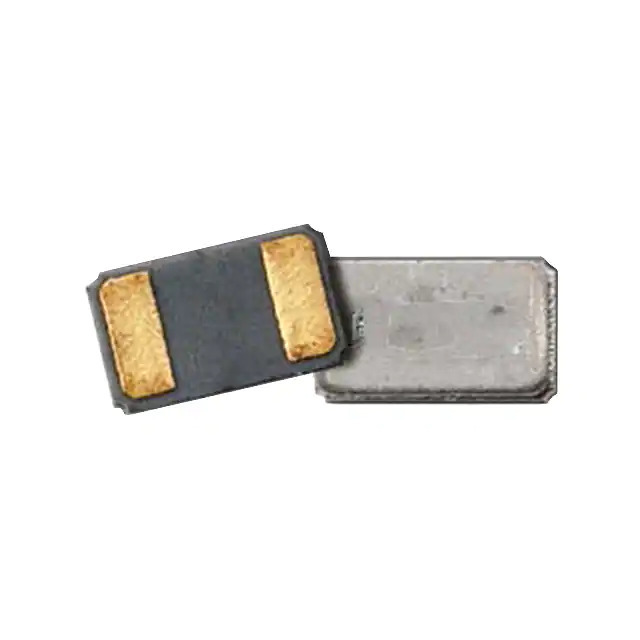

ABS06-32.768KHZ-6-1-T Abracon LLC
Same model may have multiple batches, images only for reference.

ABS06-32.768KHZ-6-1-T

Part No ABS06-32.768KHZ-6-1-T
Manufacturer Abracon LLC
Catalog Oscillators
Description CRYSTAL 32.7680KHZ 6PF SMD
Datasheet
ABS06-32.768KHZ-6-1-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr Abracon LLC
Series ABS06
Package Tape & Reel
Product Status Active
Type kHz Crystal (Tuning Fork)
Frequency 32.768 kHz
Frequency Stability -
Frequency Tolerance ±10ppm
Load Capacitance 6pF
ESR (Equivalent Series Resistance) 90 kOhms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Ratings -
Mounting Type Surface Mount
Package / Case 2-SMD, No Lead
Size / Dimension 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height - Seated (Max) 0.024" (0.60mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0010
Win Source Part Number 1366327-ABS06-32.768KHZ-6-1-T
Ultra Librarian 3D Model Ultra Librarian ABS06-32.768KHZ-6-1-T CAD Model

Description

The 1366327-ABS06-32.768KHZ-6-1-T is a kHz Crystal (Tuning Fork). Abracon LLC manufactures it.

  • Mounting Type: Surface Mount
  • Frequency: 32.768 kHz
  • Package: 2-SMD, No Lead
  • Size: 0.079" L x 0.047" W (2.00mm x 1.20mm)
  • Height: 0.024" (0.60mm)
  • Frequency Tolerance: ±10ppm
  • Load Capacitance: 6pF
  • Operating Temperature: -40°C to 85°C
  • ESR: 90 kOhms
  • Series: ABS06
  • Product Status: Active
  • REACH: Unaffected
  • ECCN: EAR99
