Same model may have multiple batches, images only for reference.

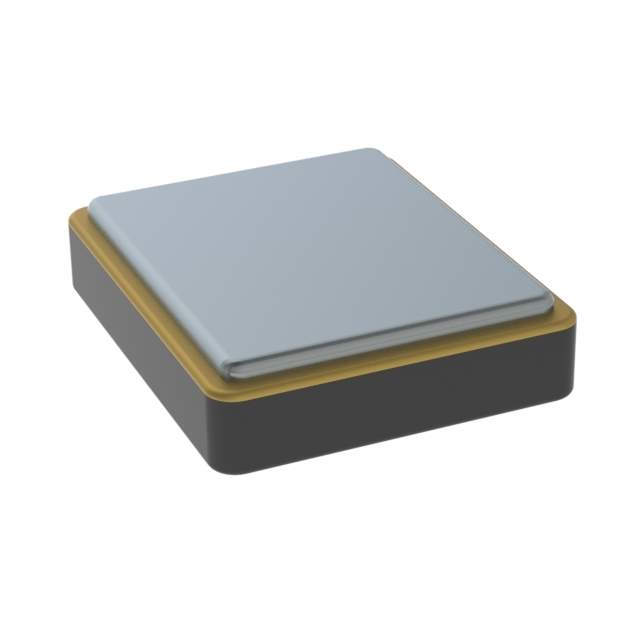

ABM13W-32.0000MHZ-5-B2G-T5 Real Image
Same model may have multiple batches, images only for reference.

ABM13W-32.0000MHZ-5-B2G-T5

Part No ABM13W-32.0000MHZ-5-B2G-T5
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 32.0000MHZ 5PF SMD / 32 MHz ±20ppm Crystal 5pF 100 Ohms 4-SMD, No Lead
Datasheet
ABM13W-32.0000MHZ-5-B2G-T5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABM13W
Package Tape & Reel (TR)
Type MHz Crystal
Frequency 32 MHz
Frequency Stability ±15ppm
Frequency Tolerance ±20ppm
Load Capacitance 5pF
ESR (Equivalent Series Resistance) 100 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.047" L x 0.039" W (1.20mm x 1.00mm)
Height - Seated (Max) 0.013" (0.33mm)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Standard Package 5,000
Win Source Part Number 965210-ABM13W-32.0000MHZ-5-B2G-T5
Ultra Librarian 3D Model Ultra Librarian ABM13W-32.0000MHZ-5-B2G-T5 CAD Model

Description

The ABM13W-32.0000MHZ-5-B2G-T5 is a MHz crystal oscillator from Abracon LLC.

  • Frequency: 32 MHz
  • Frequency Stability: ±15ppm
  • ESR: 100 Ohms
  • Frequency Tolerance: ±20ppm
  • Load Capacitance: 5pF
  • Application: requires a stable clock signal
  • Packaging: tape and reel
