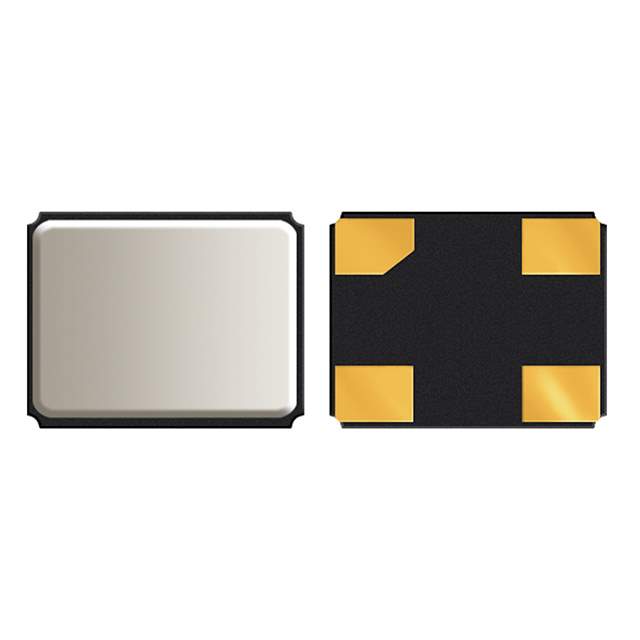

ABM10-27.000MHZ-E20-T Real Image
Same model may have multiple batches, images only for reference.

ABM10-27.000MHZ-E20-T

Part No ABM10-27.000MHZ-E20-T
Manufacturer Abracon LLC
Catalog Oscillators
Description CRYSTAL 27.0000MHZ 10PF SMD / 27 MHz ±20ppm Crystal 10pF 100 Ohms 4-SMD, No Lead
Datasheet
ABM10-27.000MHZ-E20-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Manufacturer Abracon LLC
Packaging Reel - TR
Type MHz Crystal
Frequency 27 MHz
Frequency Stability ±20ppm
Frequency Tolerance ±20ppm
Load Capacitance 10pF
ESR (Equivalent Series Resistance) 100 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting Surface Mount
Case / Package 4-SMD, No Lead
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.028" (0.70mm)
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Other Part Number 300-9096-2-ND,535-9096-6,300-9096-1-ND,2266-ABM10-27.000MHZ-E20-T,ABM1027000MHZE20T,300-9096-1,300-9096-2,535-9096-1,535-9096-2
Standard Package 1,000
Win Source Part Number 1328358-ABM10-27.000MHZ-E20-T
Ultra Librarian 3D Model Ultra Librarian ABM10-27.000MHZ-E20-T CAD Model

Description

The ABM10-27.000MHZ-E20-T is a MHz crystal manufactured by Abracon LLC, a company known for producing high-quality electronic components.

  • Frequency: 27 MHz
  • ESR: 100 Ohms
  • Frequency Stability: ±20ppm
  • Frequency Tolerance: ±20ppm
  • Load Capacitance: 10pF
  • Operating Temperature: -20°C to 70°C
