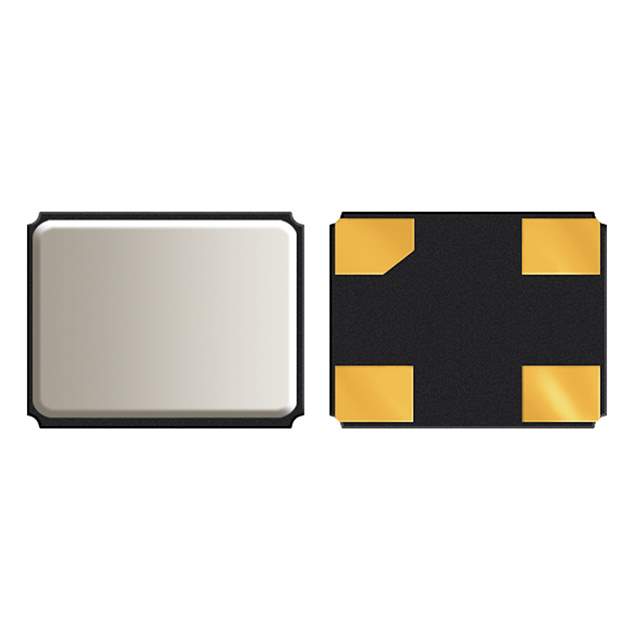

ABM10-25.000MHZ-D30-T3 Real Image
Same model may have multiple batches, images only for reference.

ABM10-25.000MHZ-D30-T3

Part No ABM10-25.000MHZ-D30-T3
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 25.0000MHZ 10PF SMD / 25 MHz ±20ppm Crystal 10pF 100 Ohms 4-SMD, No Lead
Datasheet
ABM10-25.000MHZ-D30-T3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABM10
Package Tape & Reel
Type MHz Crystal
Frequency 25 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±20ppm
Load Capacitance 10pF
ESR (Equivalent Series Resistance) 100 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.028" (0.70mm)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Other Names 535-10932-6,535-10932-2,535-10932-1,ABM1025000MHZD30T3
Standard Package 3,000
Win Source Part Number 1010452-ABM10-25.000MHZ-D30-T3
Ultra Librarian 3D Model Ultra Librarian ABM10-25.000MHZ-D30-T3 CAD Model

Description

The Abracon LLC 1010452-ABM10-25.000MHZ-D30-T3 is a surface mount crystal with a frequency of 25MHz and a frequency tolerance of ±20ppm.

  • Frequency: 25MHz
  • Frequency Tolerance: ±20ppm
  • Load Capacitance: 10pF
  • ESR: 100 Ohms
  • Height: 0.028 inches (0.70mm)
  • Package Size: 4-SMD, No Lead
  • Applications: microcontrollers, sensors, and communication devices
  • Operating Temperature Range: -40°C to 85°C
  • REACH: unaffected
  • Estimated Production Lead Time: 33 weeks
