Same model may have multiple batches, images only for reference.

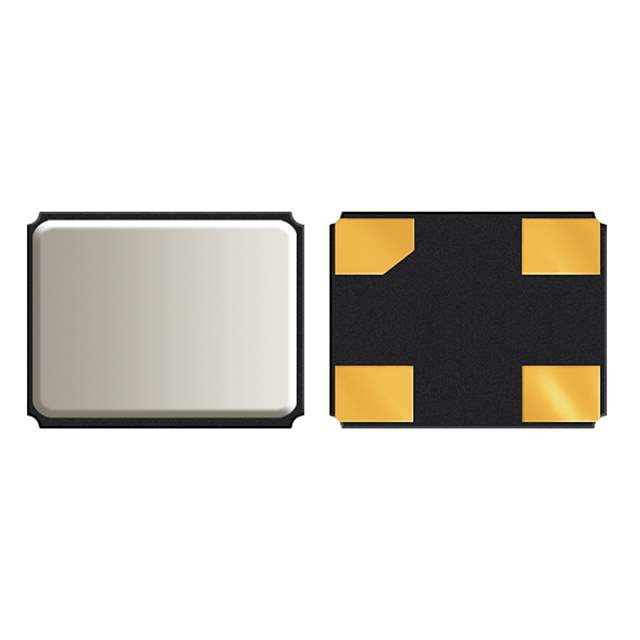

ABM10-16.384MHZ-D30-T3 Real Image
Same model may have multiple batches, images only for reference.

ABM10-16.384MHZ-D30-T3

Part No ABM10-16.384MHZ-D30-T3
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 16.3840MHZ 10PF SMD / 16.384 MHz ±20ppm Crystal 10pF 150 Ohms 4-SMD, No Lead
Datasheet
ABM10-16.384MHZ-D30-T3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABM10
Package Tape & Reel
Type MHz Crystal
Frequency 16.384 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±20ppm
Load Capacitance 10pF
ESR (Equivalent Series Resistance) 150 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.028" (0.70mm)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Other Names 535-10925-2,ABM1016384MHZD30T3,535-10925-1,535-10925-6
Standard Package 3,000
Win Source Part Number 1034865-ABM10-16.384MHZ-D30-T3
Ultra Librarian 3D Model Ultra Librarian ABM10-16.384MHZ-D30-T3 CAD Model

Description

The ABM10 series from Abracon LLC is a MHz crystal component with a frequency of 16.384MHz.

  • Frequency: 16.384MHz
  • Package Type: 4-SMD, no lead
  • Supplied On: tape and reel
  • Operating Temperature Range: -40°C to 85°C
  • Frequency Tolerance: ±20ppm
  • Frequency Stability: ±30ppm
  • Category: crystal
  • ECCN: EAR99
  • REACH: unaffected
