Same model may have multiple batches, images only for reference.

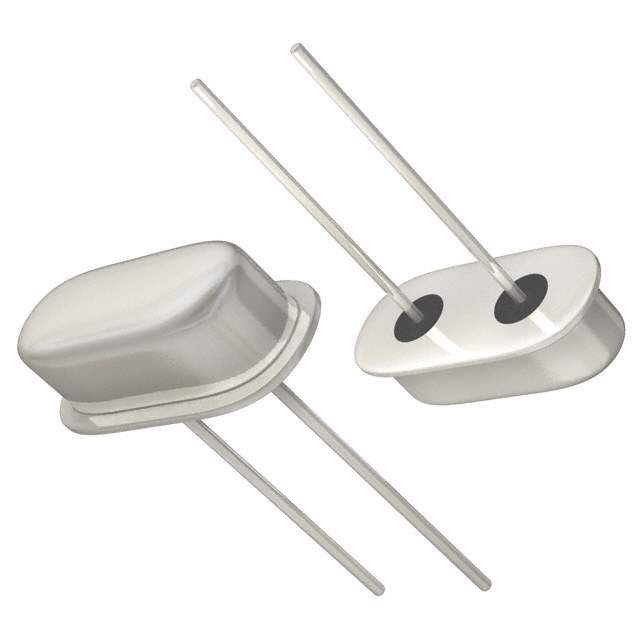

ABL-25.000MHZ-B2F Real Image
Same model may have multiple batches, images only for reference.

ABL-25.000MHZ-B2F

Part No ABL-25.000MHZ-B2F
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 25.0000MHZ 18PF TH / 25 MHz ±20ppm Crystal 18pF 40 Ohms HC-49/US
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr Abracon LLC
Series ABL
Package Bulk
Type MHz Crystal
Frequency 25 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±20ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 40 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting Type Through Hole
Package / Case HC-49/US
Size / Dimension 0.453" L x 0.197" W (11.50mm x 5.00mm)
Height - Seated (Max) 0.138" (3.50mm)
Standard Package 1,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 1351445-ABL-25.000MHZ-B2F
Ultra Librarian 3D Model Ultra Librarian ABL-25.000MHZ-B2F CAD Model

Description

The ABL series MHz crystal is a reliable and high-performance electronic component manufactured by Abracon LLC.

  • Frequency: 25 MHz
  • ESR: 40 Ohms
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±20ppm
  • Mode: Fundamental
  • Mounting Type: Through Hole
  • Temperature Range: -20°C to 70°C
  • Package/Case: HC-49/US
  • Dimensions: 0.453" L x 0.197" W (11.50mm x 5.00mm)
  • Seated Height: 0.138" (3.50mm)
  • Packaging: Bulk
  • Standard Package: 1,000
