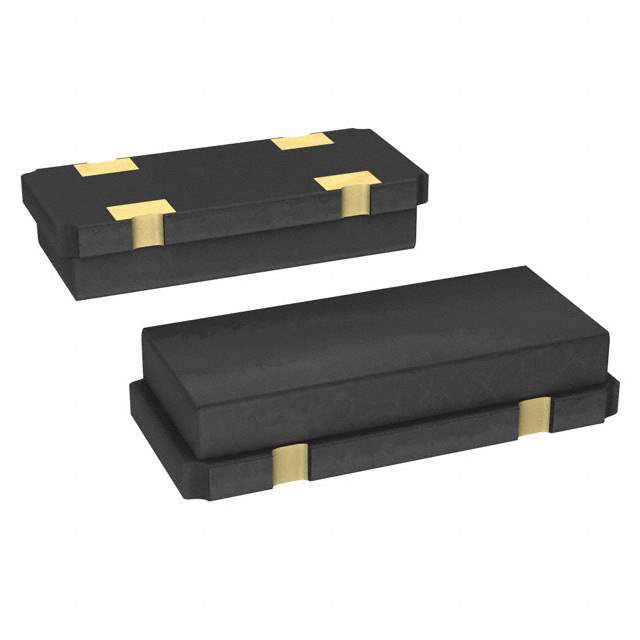

ABC2-4.9152MHZ-4-T Real Image
Same model may have multiple batches, images only for reference.

ABC2-4.9152MHZ-4-T

Part No ABC2-4.9152MHZ-4-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 4.9152MHZ 18PF SMD / 4.9152 MHz ±30ppm Crystal 18pF 80 Ohms 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABC2
Package Tape & Reel
Type MHz Crystal
Frequency 4.9152 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 80 Ohms
Operating Mode Fundamental
Temperature Range - Operating -10°C ~ 60°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.465" L x 0.217" W (11.80mm x 5.50mm)
Height - Seated (Max) 0.079" (2.00mm)
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.60.0030
Other Names 535-14125-2,535-14125-6,535-14125-1,ABC2-4.9152MHZ-4-T-ND
Standard Package 1,000
Win Source Part Number 1212713-ABC2-4.9152MHZ-4-T
Ultra Librarian 3D Model Ultra Librarian ABC2-4.9152MHZ-4-T CAD Model

Description

The Abracon ABC2-4.9152MHZ-4-T is a 4.9152 MHz crystal in a 4-SMD, no lead package from Abracon.

  • Frequency: 4.9152 MHz
  • Package: 4-SMD, No Lead
  • Frequency Tolerance: ±30ppm
  • Frequency Stability: ±50ppm
  • ESR: 80 Ohms
  • Load Capacitance: 18pF
  • Operating Mode: Fundamental
  • Operating Temperature: -10°C to 60°C
  • Dimension: 0.465" L x 0.217" W (11.80mm x 5.50mm)
  • Description: The crystal is ideal for applications that require high frequency stability and accuracy.
