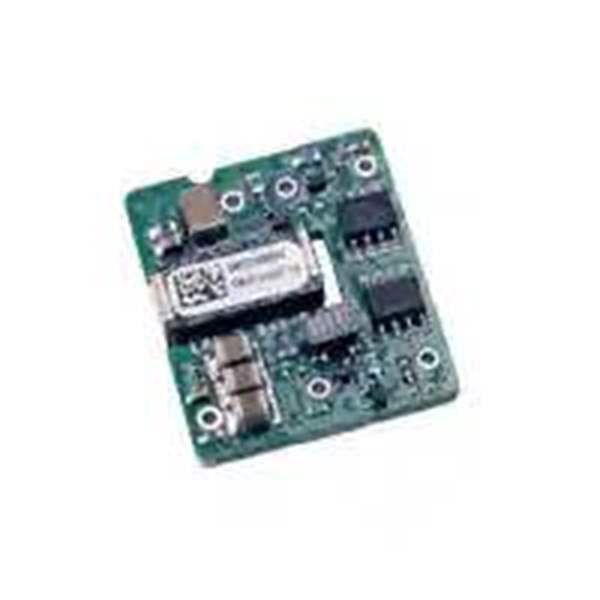

Same model may have multiple batches, images only for reference.

SW003A0A91-SRZ

Get a Quote

Part No	SW003A0A91-SRZ
Manufacturer	ABB Embedded Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 15W / Isolated Module DC DC Converter 1 Output 5V 3A 36V - 75V Input
Datasheet	SW003A0A91-SRZ Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	ABB Embedded Power
Series	SW003
Package	Tape & Reel
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	36V
Voltage - Input (Max)	75V
Voltage - Output 1	5V
Current - Output (Max)	3A
Power (Watts)	15 W
Voltage - Isolation	2.25 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP, UVLO
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	85.5%
Mounting Type	Surface Mount
Package / Case	6-SMD Module
Size / Dimension	1.10" L x 0.96" W x 0.34" H (27.9mm x 24.4mm x 8.6mm)
Control Features	Enable, Active Low
Standard Package	150 pcs
Moisture Sensitivity Level (MSL)	2A (4 Weeks)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	847064-SW003A0A91-SRZ
Ultra Librarian 3D Model	Ultra Librarian SW003A0A91-SRZ CAD Model

Alternative Products

Description

The SW003A0A91-SRZ is an isolated module power supply from ABB Embedded Power.

Series: SW003
Mounting Type: Board Mount
Features: Remote On/Off, OCP, OVP, UVLO
Power: 15W
Maximum Output Current: 3A
Voltage Input: 36V to 75V
Voltage Isolation: 2.25 kV
Size: 1.10" L x 0.96" W x 0.34" H (27.9mm x 24.4mm x 8.6mm)
Application: ITE (Commercial)
Efficiency: 85.5%
Operating Temperature: -40°C to 85°C
Package: Tape & Reel
Standard Package: 150 pcs
Status: Obsolete
