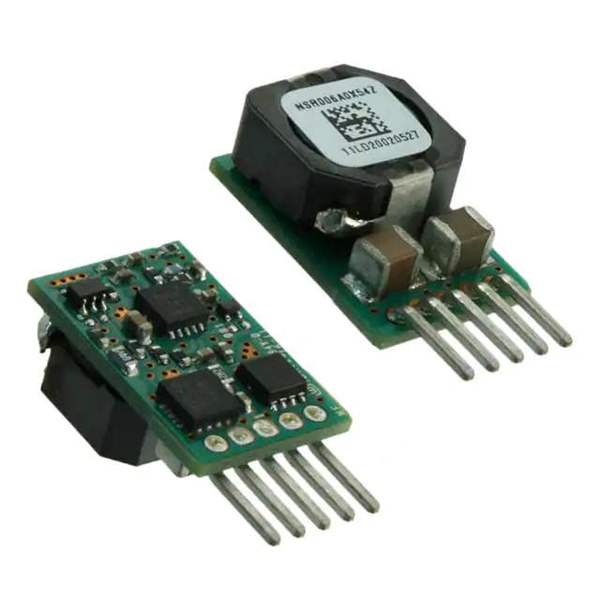

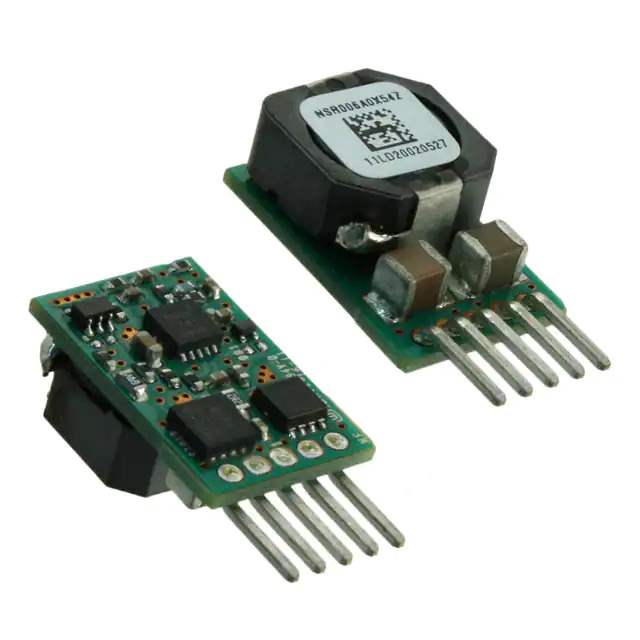

NSR003A0X4Z Real Image
Same model may have multiple batches, images only for reference.

NSR003A0X4Z

Part No NSR003A0X4Z
Manufacturer ABB Embedded Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 0.6-6V 18W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr ABB Embedded Power
Series Naos Raptor
Package Tray
Product Status Active
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 14V
Voltage - Output 1 0.6 ~ 6V
Current - Output (Max) 3A
Power (Watts) 18 W
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 95.8%
Mounting Type Through Hole
Package / Case 5-SIP Module
Size / Dimension 0.41" L x 0.31" W x 0.65" H (10.4mm x 7.9mm x 16.5mm)
Control Features Enable, Active High
Base Product Number NSR003
Standard Package 315 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 649573-NSR003A0X4Z
Ultra Librarian 3D Model Ultra Librarian NSR003A0X4Z CAD Model

Description

The 649573-NSR003A0X4Z is part of the Naos Raptor series, a line of non-isolated PoL modules designed for power supplies in board mount DC-DC converters from ABB Embedded Power.

  • Size: 0.41" L x 0.31" W x 0.65" H (10.4mm x 7.9mm x 16.5mm)
  • Features: Remote On/Off, OCP, OTP, and UVLO
  • Power Output: 18W
  • Efficiency: 95.8%
  • Applications: ITE (Commercial)
  • Voltage Input: 4.5V to 14V
  • Output Voltage: 0.6V to 6V
  • Mounting: Through hole
  • Package: Tray
  • Standard Package: 315 pcs
