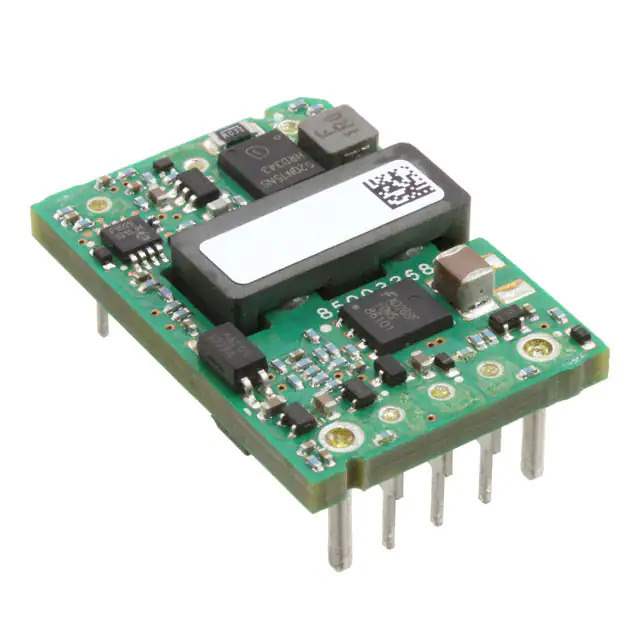

Same model may have multiple batches, images only for reference.

KHHD002A5B41Z

Name: KHHD002A5B41Z
Brand: ABB Embedded Power
SKU: 876365
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	KHHD002A5B41Z
Manufacturer	ABB Embedded Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V 30W
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	ABB Embedded Power
Series	Hammerhead™ KHHD002A5B
Package	Tray
Product Status	Active
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	75V
Voltage - Output 1	12V
Current - Output (Max)	2.5A
Power (Watts)	30 W
Voltage - Isolation	2.25 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP, UVLO
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	90%
Mounting Type	Through Hole
Package / Case	8-DIP Module, 1/16 Brick
Size / Dimension	1.30" L x 0.90" W x 0.37" H (33.0mm x 22.9mm x 9.3mm)
Control Features	Enable, Active Low
Base Product Number	KHHD002
Standard Package	75 pcs
MSL Level	2A (4 Weeks)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	876365-KHHD002A5B41Z
Ultra Librarian 3D Model	Ultra Librarian KHHD002A5B41Z CAD Model

Alternative Products

Description

The KHHD002A5B41Z is an isolated module used in power supply applications.

Series: Hammerhead™ KHHD002A5B
Features: Remote On/Off, Overcurrent Protection (OCP), Overtemperature Protection (OTP), Overvoltage Protection (OVP), and Undervoltage Lockout (UVLO)
Size: 1.30" L x 0.90" W x 0.37" H (33.0mm x 22.9mm x 9.3mm)
Application: ITE (Commercial)
Power Rating: 30W
Input Voltage Range: 18V to 75V
Output Voltage: Fixed @ 12V
Output Count: Single
Max Output Current: 2.5A
Mounting Type: Through Hole
Package Type: Tray
Operating Temperature Range: -40°C to 85°C
Manufacturer: ABB Embedded Power
Status: Active
