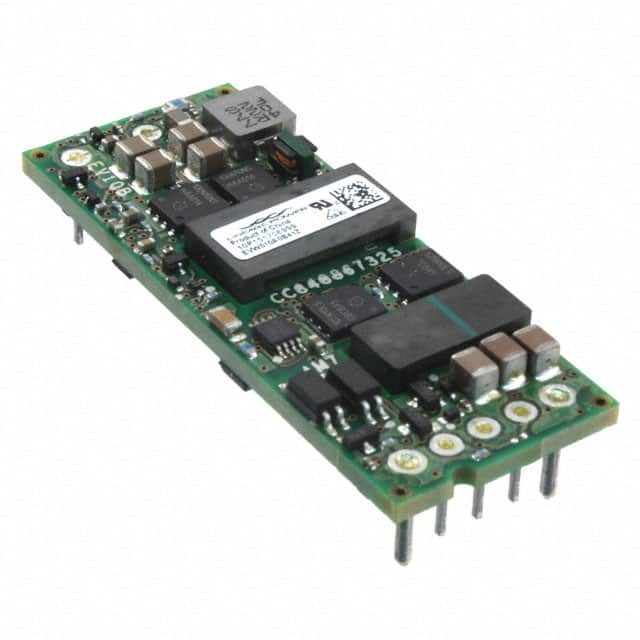

Same model may have multiple batches, images only for reference.
EVW010A0B41Z
Same model may have multiple batches, images only for reference.

EVW010A0B41Z

Part No EVW010A0B41Z
Manufacturer ABB Embedded Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 120W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr ABB Embedded Power
Series EVW010A0B
Package Bulk
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Current - Output (Max) 10A
Power (Watts) 120 W
Voltage - Isolation 2.25 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 93.5%
Mounting Type Through Hole
Package / Case Module
Size / Dimension 2.28" L x 0.90" W x 0.34" H (57.9mm x 22.8mm x 8.5mm)
Control Features Enable, Active Low
Base Product Number EVW010
Standard Package 36 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 846833-EVW010A0B41Z
Ultra Librarian 3D Model Ultra Librarian EVW010A0B41Z CAD Model

Description

The EVW010A0B41Z is a power supply module designed for board mount applications. It is part of the EVW010A0B series by ABB Embedded Power.

  • Module Type: isolated module
  • Power Rating: 120W
  • Features: remote On/Off, over-current protection (OCP), over-temperature protection (OTP), over-voltage protection (OVP), and under-voltage lockout (UVLO)
  • Size: 2.28" L x 0.90" W x 0.34" H (57.9mm x 22.8mm x 8.5mm)
  • Applications: ITE (Commercial) applications
  • Voltage Isolation: 2.25 kV
  • Output Voltage: 12V
  • Efficiency: 93.5%
  • Maximum Output Current: 10A
  • Operating Temperature: -40°C to 85°C
