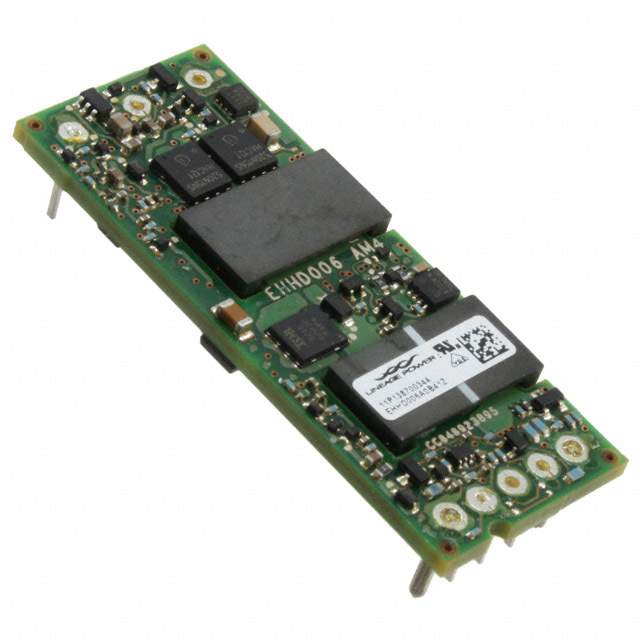

Same model may have multiple batches, images only for reference.

EHHD006A0B41Z

Name: EHHD006A0B41Z
Brand: ABB Embedded Power
SKU: 1350337
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	EHHD006A0B41Z
Manufacturer	ABB Embedded Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V 72W / Isolated Module DC DC Converter 1 Output 12V 6A 18V - 75V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	ABB Power Electronics Inc.
Series	Hammerhead™ EHHD006A0B (72W)
Package	Tray
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	75V
Voltage - Output 1	12V
Current - Output (Max)	6A
Power (Watts)	72 W
Voltage - Isolation	2.25 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP, UVLO
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	92.5%
Mounting Type	Through Hole
Package / Case	8-DIP Module, 1/8 Brick
Size / Dimension	2.28" L x 0.90" W x 0.31" H (57.9mm x 22.9mm x 7.8mm)
Control Features	Enable, Active Low
Base Product Number	EHHD006
Standard Package	36
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1350337-EHHD006A0B41Z
Ultra Librarian 3D Model	Ultra Librarian EHHD006A0B41Z CAD Model

Alternative Products

Description

The Hammerhead™ EHHD006A0B41Z isolated module from ABB Power Electronics Inc. is a DC-DC converter with a power rating of 72 W and an efficiency of 92.5%.

Power Rating: 72 W
Efficiency: 92.5%
Control Features: Remote On/Off, OCP, OTP, OVP, UVLO
Voltage Isolation: 2.25 kV
Current Output: 6A
Voltage Input: 18V to 75V
Output Voltage: 12V
Temperature Range: -40°C to 85°C
Application: ITE (Commercial)
Mounting Type: Through Hole
