Same model may have multiple batches, images only for reference.

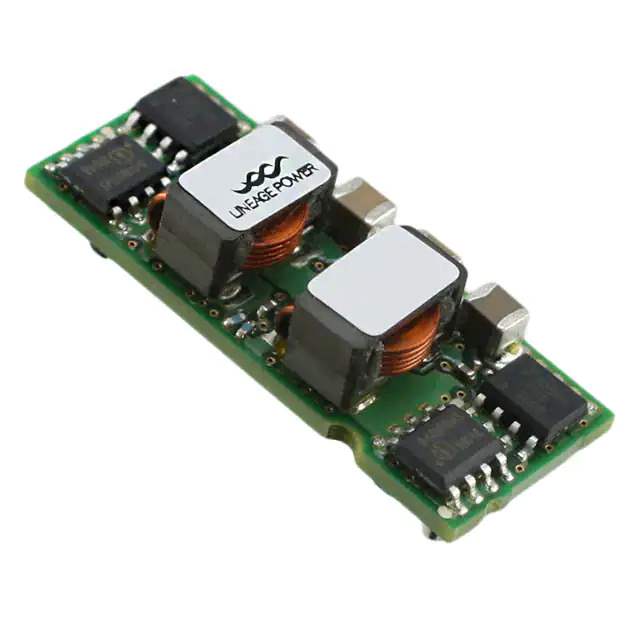

ATH030A0X3-SRZ Real Image
Same model may have multiple batches, images only for reference.

ATH030A0X3-SRZ

Part No ATH030A0X3-SRZ
Manufacturer ABB Embedded Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 0.8-3.63V 109W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr ABB Embedded Power
Series Austin MegaLynx™
Package Tape & Reel
Product Status Active
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 0.8 ~ 3.63V
Current - Output (Max) 30A
Power (Watts) 109 W
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 92.2%
Mounting Type Surface Mount
Package / Case Module
Size / Dimension 1.30" L x 0.53" W x 0.39" H (33.0mm x 13.5mm x 10.0mm)
Control Features Enable, Active Low
Base Product Number ATH030
Standard Package 200 pcs
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 566622-ATH030A0X3-SRZ
Ultra Librarian 3D Model Ultra Librarian ATH030A0X3-SRZ CAD Model

Description

The Austin MegaLynx™ series offers a high-power solution for board mount applications. The 566622-ATH030A0X3-SRZ is a non-isolated PoL module with a maximum output current of 30A.

  • Module Type: Non-Isolated PoL
  • Maximum Output Current: 30A
  • Input Voltage Range: 4.5V to 5.5V
  • Output Voltage Range: 0.8V to 3.63V
  • Features: Remote On/Off, Overcurrent Protection (OCP), Overtemperature Protection (OTP), Undervoltage Lockout (UVLO)
  • Application: ITE (Commercial)
  • Mounting: Surface Mountable
  • Package: Tape & Reel
  • Size: 1.30" L x 0.53" W x 0.39" H
  • Operating Temperature: -40°C to 85°C
  • Efficiency: 92.2%
  • Manufacturer: ABB Embedded Power
  • Product Line: Active
  • Standard Package: 200 pcs
