Same model may have multiple batches, images only for reference.

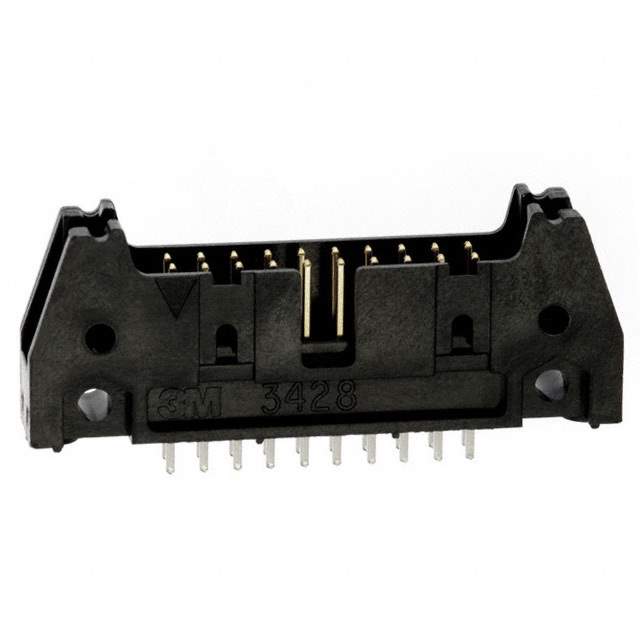

N3428-6002RB Real Image
Same model may have multiple batches, images only for reference.

N3428-6002RB

Part No N3428-6002RB
Manufacturer 3M
Catalog Circular Connectors - Housings
Description CONN HEADER VERT 20POS 2.54MM / Connector Header Through Hole 20 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr 3M
Series 3000
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 20
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.112" (2.84mm)
Overall Contact Length 0.652" (16.56mm)
Insulation Height 0.680" (17.27mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features Keying Slot, Mounting Flange
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1.75A
Contact Finish Thickness - Post 200.0µin (5.08µm)
Base Product Number N3428
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names XP700002791,80400027787,MHS20L,7000057575,51111650677,5111165067,N34286002RB
Standard Package 300
Win Source Part Number 1186455-N3428-6002RB
Ultra Librarian 3D Model Ultra Librarian N3428-6002RB CAD Model

Description

The 3M 1186455-N3428-6002RB is a header connector component.

  • Contact Type: male pin
  • Positions Loaded: 20 (all positions)
  • Mounting Type: through-hole
  • Pitch: 0.100 inches
  • Contact Material: copper alloy
  • Current Rating: 1.75A
  • Contact Finish (Mating): gold
  • Contact Finish Thickness (Mating): 30.0µin
  • Contact Finish (Post): tin
  • Contact Finish Thickness (Post): 200.0µin
  • REACH: unaffected
