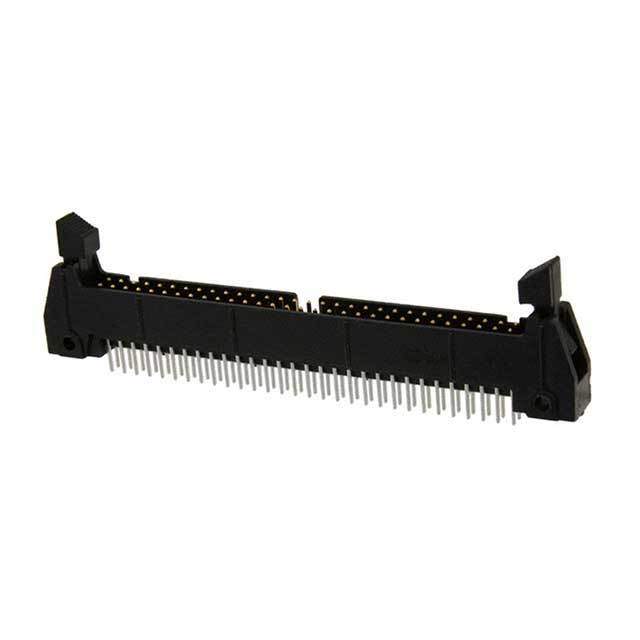

N3372-6202RB Real Image
Same model may have multiple batches, images only for reference.

N3372-6202RB

Part No N3372-6202RB
Manufacturer 3M
Catalog Rectangular Connectors
Description CONN HEADER VERT 60POS 2.54MM / Connector Header Through Hole 60 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr 3M
Series 3000
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 60
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Lock/Eject Hooks, Short
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.112" (2.84mm)
Overall Contact Length 0.652" (16.56mm)
Insulation Height 0.680" (17.27mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT) , Polyester, Glass Filled
Features Keying Slot, Mounting Flange
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1.75A
Contact Finish Thickness - Post 200.0µin (5.08µm)
Base Product Number N3372
Standard Package 150
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1349574-N3372-6202RB
Ultra Librarian 3D Model Ultra Librarian N3372-6202RB CAD Model

Description

The 3M 3000 series header is a male pin connector designed for use in rectangular connectors and interconnects.

  • Connector Type: Header
  • Contact Type: Male Pin
  • Number of Positions: 60
  • Number of Rows: 2
  • Pitch: 0.100" (2.54mm)
  • Mounting Type: Board to Board or Cable
  • Termination: Solder
  • Fastening Type: Latch Lock/Eject Hooks, Short
  • Contact Finish - Mating: Gold
  • Contact Finish Thickness - Mating: 30.0µin (0.76µm)
  • Insulation Height: 0.680" (17.27mm)
  • Operating Temperature: -55°C ~ 105°C
  • Features: Keying Slots, Mounting Flanges
  • Contact Finish - Post: Tin
  • Contact Finish Thickness - Post: 200.0µin (5.08µm)
  • Shrouding: Shrouded - 4 Wall
  • Row Spacing: 0.100" (2.54mm)
  • Overall Contact Length: 0.652" (16.56mm)
  • Packaging: Bulk
  • Contact Material: Copper Alloy
  • All Positions Loaded: Yes
