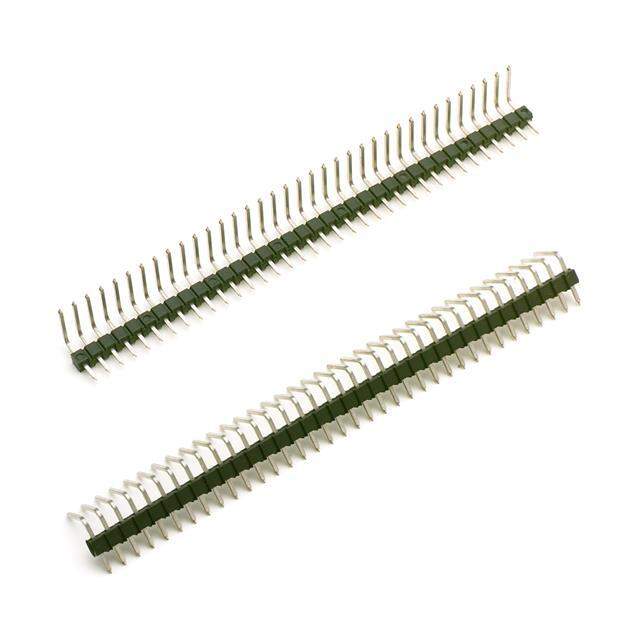

929400-01-04-RK Real Image
Same model may have multiple batches, images only for reference.

929400-01-04-RK

Part No 929400-01-04-RK
Manufacturer 3M
Catalog Rectangular Connectors
Description CONN HEADER VERT 4POS 2.54MM / Connector Header Through Hole 4 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr 3M
Series 929
Package Bulk
Connector Type Header, Breakaway
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Board
Shrouding Unshrouded
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.295" (7.49mm)
Contact Length - Post 0.130" (3.30mm)
Overall Contact Length 0.535" (13.59mm)
Insulation Height 0.110" (2.79mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 200.0µin (5.08µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT)
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 2.5A
Base Product Number 929400
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 5111993803,51119938036,80001220179,9294000104RK,929400E-01-04
Standard Package 1
Win Source Part Number 1181989-929400-01-04-RK
Ultra Librarian 3D Model Ultra Librarian 929400-01-04-RK CAD Model

Description

The 3M 1181989-929400-01-04-RK is a male pin header connector designed for use in rectangular connector applications.

  • Positions: four
  • Loaded: all positions
  • Rows: single row
  • Mounting: through-hole mounting using solder termination
  • Pitch: 0.100" (2.54mm)
  • Insulation Color: black
  • Temperature Range: -40°C to 105°C
  • Current Rating: 2.5A
  • Applications: board-to-board style applications
