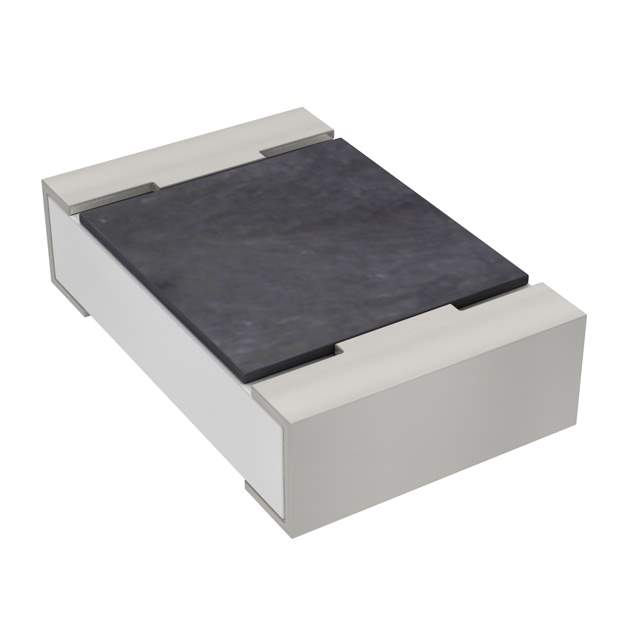

The RC0805FR-7W2R2L is a thick film chip resistor manufactured by Yageo. This resistor is designed for general purpose applications, providing reliable performance in a compact 0805 package. It features a stable resistance value of 2.2 Ohms, making it suitable for current limiting, voltage division, and pull-up/pull-down resistor applications in diverse electronic circuits.

Applications:

• Consumer electronics
• Industrial equipment
• Telecommunications
• Automotive electronics
• Power supplies

Features:

• Compact 0805 package size
• Resistance value of 2.2 Ohms
• Tolerance of 1%
• Thick film technology
• RoHS compliant

Benefits:

• Offers accurate and stable resistance in various operating conditions
• Small size allows for high-density circuit designs
• Suitable for automated placement processes
• Minimizes board space usage
• Provides a cost-effective solution for general-purpose applications

Additional Details:

The RC0805FR-7W2R2L has a power rating of 0.125W and a temperature coefficient of ±200 ppm/°C. It consists of a high-quality ceramic substrate and a thick film resistive element. The resistor's terminations are plated with a nickel barrier to ensure excellent solderability and prevent leaching during the soldering process. The operating temperature range is -55°C to +155°C. It is often utilized in circuits where precise resistance values are crucial, such as amplifier circuits, filter networks, and voltage regulators. Its compact size and dependable performance make it a versatile choice for a broad spectrum of electronic applications.
