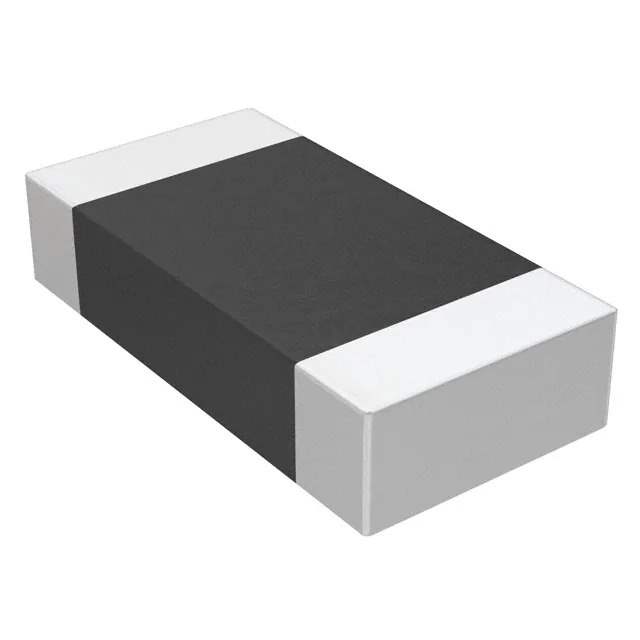

Same model may have multiple batches, images only for reference.

CC1206JKNPOCBN101

Name: CC1206JKNPOCBN101
Brand: Yageo
SKU: 576725
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	CC1206JKNPOCBN101
Manufacturer	Yageo
Catalog	Ceramic Capacitors
Description	CAP CER 100PF 1KV C0G/NPO 1206
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Ceramic Capacitors
Mfr	YAGEO
Series	CC
Package	Tape & Reel
Product Status	Active
Capacitance	100 pF
Tolerance	±5%
Voltage - Rated	1000V (1kV)
Temperature Coefficient	C0G, NP0
Temperature Range - Operating	-55°C ~ 125°C
Features	High Voltage
Applications	General Purpose
Mounting Type	Surface Mount, MLCC
Package / Case	1206 (3216 Metric)
Size / Dimension	0.126" L x 0.063" W (3.20mm x 1.60mm)
Thickness (Max)	0.057" (1.45mm)
Standard Package	3,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.24.0020
Win Source Part Number	576725-CC1206JKNPOCBN101
Ultra Librarian 3D Model	Ultra Librarian CC1206JKNPOCBN101 CAD Model

Description

The 576725-CC1206JKNPOCBN101 is a ceramic capacitor from YAGEO's CC series.

Application: General Purpose
Voltage - Rated: 1000V (1kV)
Capacitance: 100 pF
Tolerance: ±5%
Temperature Coefficient: C0G, NP0
Operating Temperature: -55°C ~ 125°C
Size / Dimension: 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max): 0.057" (1.45mm)
Mounting Type: Surface Mount
Package / Case: 1206 (3216 Metric)
Packaging: Tape & Reel (TR)
Quantity: 3,000 Pieces
Status: Active
