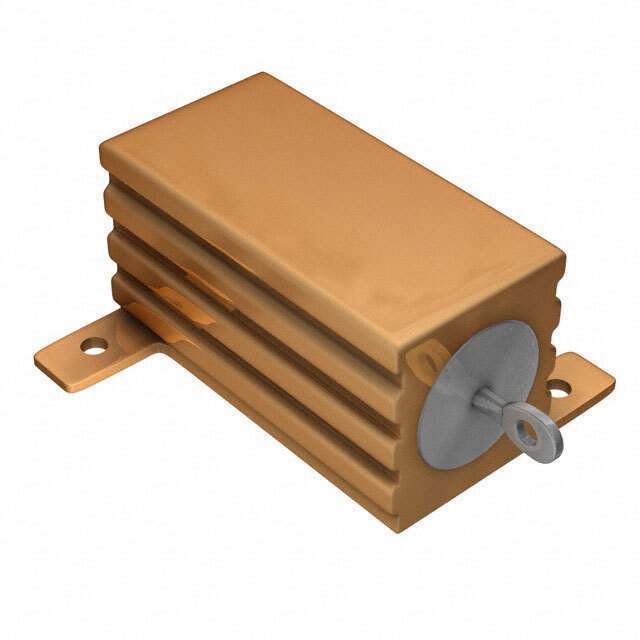

AHA25AFB-25R YAGEO
Same model may have multiple batches, images only for reference.

AHA25AFB-25R

Part No AHA25AFB-25R
Manufacturer Yageo
Catalog Chassis Mount Resistors
Description RES CHAS MNT 25 OHM 1% 25W
Datasheet
AHA25AFB-25R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer YAGEO
Resistance 25 Ohms
Tolerance ±1%
Power (Watts) 25W
Composition Wirewound
Temperature Coefficient ±200ppm/°C
Operating Temperature -55°C ~ 250°C
Coating, Housing Type Aluminum
Mounting Feature Flanges
Size / Dimension 1.063" L x 1.063" W (27.00mm x 27.00mm)
Height - Seated (Max) 0.587" (14.90mm)
Lead Style Solder Lugs
Ultra Librarian 3D Model Ultra Librarian AHA25AFB-25R CAD Model

Description

25 Ohms ±1% 25W Wirewound Chassis Mount Resistor
