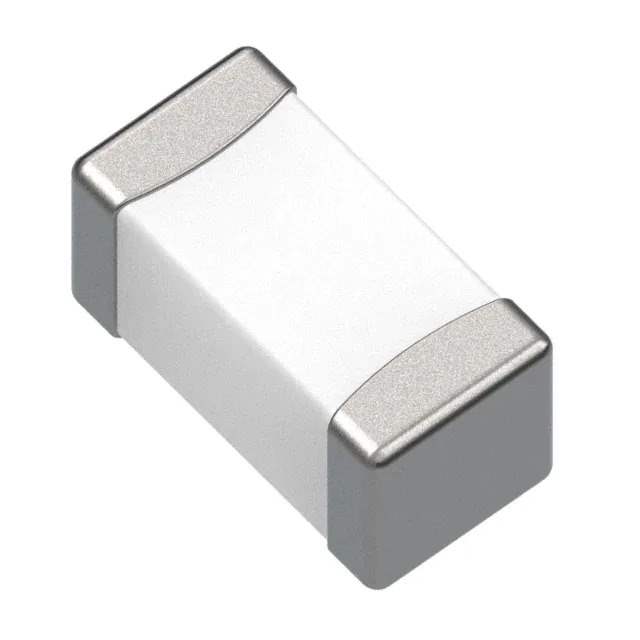

744786156A Real Image
Same model may have multiple batches, images only for reference.

744786156A

Part No 744786156A
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 56NH 300MA 750MOHM SMD
Datasheet
744786156A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-MK
Package Tape & Reel
Product Status Active
Type Multilayer
Material - Core Ceramic
Inductance 56 nH
Tolerance ±5%
Current Rating (Amps) 300 mA
Shielding Unshielded
DC Resistance (DCR) 750mOhm Max
Q @ Freq 8 @ 100MHz
Frequency - Self Resonant 1.1GHz
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 MHz
Mounting Type Surface Mount
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603 (1608 Metric)
Size / Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.037" (0.95mm)
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 857601-744786156A
Ultra Librarian 3D Model Ultra Librarian 744786156A CAD Model

Description

The WE-MK series from Wurth Electronics Inc is a multilayer fixed inductor with a size of 0.063" L x 0.031" W (1.60mm x 0.80mm).

  • Inductance: 56 nH
  • Tolerance: ±5%
  • Shielded: Unshielded
  • Temperature Range: -55°C to 125°C
  • Mounting Type: Surface mount
  • Package: 0603 (1608 Metric)
  • DC Resistance (DCR): 750mOhm max
  • Current Rating: 300 mA
  • AEC-Q200 Rated: Yes
  • Frequency Self-Resonant: 1.1GHz
  • Core Material: Ceramic
  • Q Value: 8 @ 100MHz
