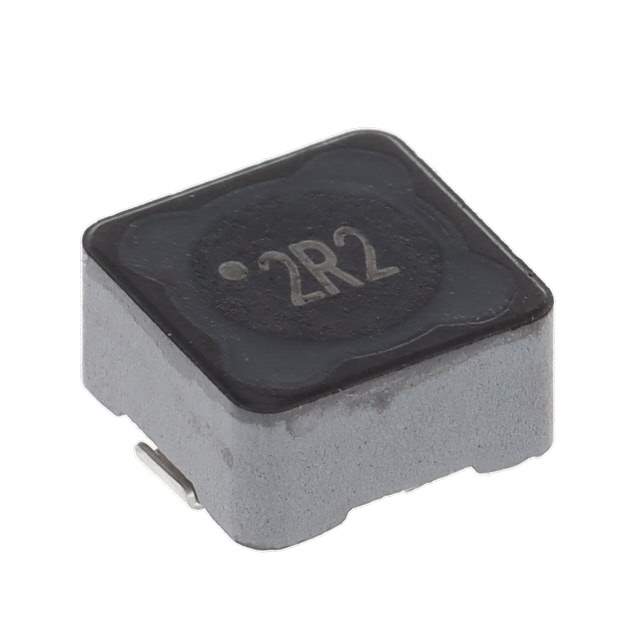

744777002 Real Image
Same model may have multiple batches, images only for reference.

744777002

Part No 744777002
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 2.2UH 6A 20 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-PD
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 6 A
Current - Saturation (Isat) 6.5A
Shielding Shielded
DC Resistance (DCR) 20mOhm Max
Frequency - Self Resonant 60MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 7345
Size / Dimension 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) 0.177" (4.50mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 857564-744777002
Ultra Librarian 3D Model Ultra Librarian 744777002 CAD Model

Description

The WE-PD series fixed inductor from Wurth Electronics Inc. is a drum core, wirewound inductor designed for various electronic applications.

  • Inductance: 2.2µH
  • Tolerance: ±20%
  • Size: 0.287" L x 0.287" W (7.30mm x 7.30mm)
  • Seated Height: 0.177" (4.50mm)
  • Current Rating: 6A
  • Shielded: Shielded
  • Package: Tape and Reel
  • Core Material: Ferrite
  • Operating Temperature: -40°C to 125°C
