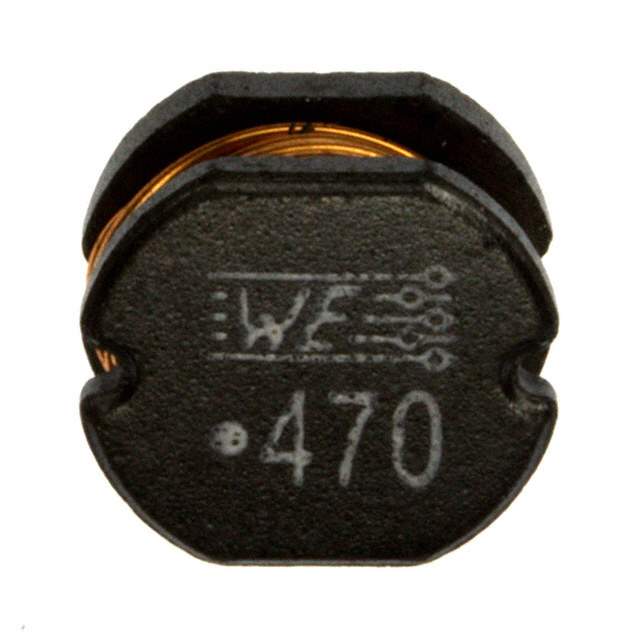

744776147 Real Image
Same model may have multiple batches, images only for reference.

744776147

Part No 744776147
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 47UH 1.45A 170MOHM SMD
Datasheet
744776147 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-PD2
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 47 µH
Tolerance ±10%
Current Rating (Amps) 1.45 A
Current - Saturation (Isat) 1.62A
Shielding Unshielded
DC Resistance (DCR) 170mOhm Max
Frequency - Self Resonant 11MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 10 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.394" L x 0.354" W (10.00mm x 9.00mm)
Height - Seated (Max) 0.232" (5.90mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1147823-744776147
Ultra Librarian 3D Model Ultra Librarian 744776147 CAD Model

Description

The WE-PD2 series from Wurth Electronics Inc is a range of fixed inductors designed for various applications.

  • Manufacturer: Wurth Electronics Inc
  • Series: WE-PD2
  • Core Type: Drum Core
  • Design: Wirewound
  • Packaging: Tape and Reel
  • Inductance: 47μH
  • Maximum Height: 0.232" (5.90mm)
  • Tolerance: ±10%
  • Core Material: Ferrite
  • Operating Temperature: -40°C to 125°C
  • DC Resistance: 170mOhm
