Same model may have multiple batches, images only for reference.

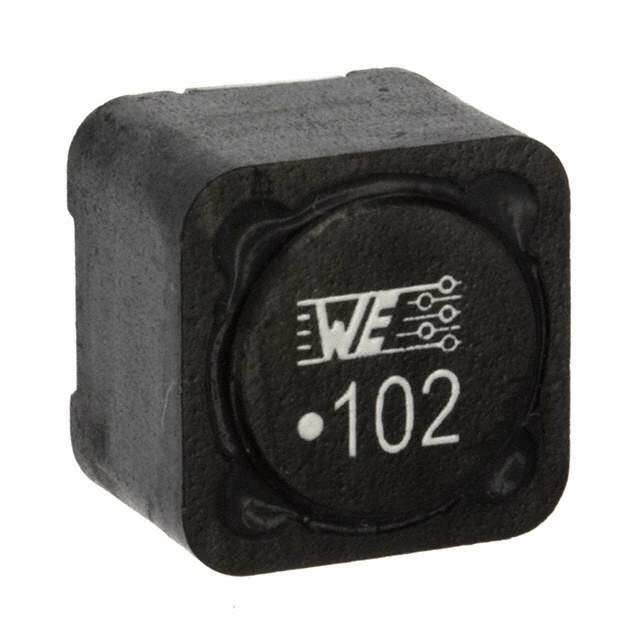

7447709102 Real Image
Same model may have multiple batches, images only for reference.

7447709102

Part No 7447709102
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description POWER-CHOKE WE-PD | FIXED IND 1MH 900MA 1.2 OHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Wurth Electronics Inc.
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 1mH
Tolerance ±20%
Current Rating (Amps) 900mA
Current - Saturation 1A
Shielding Shielded
DC Resistance (DCR) 1.2Ohm Max
Frequency - Self Resonant 1MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Maximum) 0.394" (10.00mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1130049-7447709102
Manufacturer Homepage www.we-online.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 7447709102 CAD Model

Description

The Wurth Electronics Inc. 1mH Shielded Wirewound Inductor is a high-quality electronic component designed to provide superior performance in various applications.

  • Material: Ferrite
  • Tolerance: ±20%
  • AEC-Q200 Rated: Yes
  • Current Saturation: 1A
  • DC Resistance (DCR): 1.2Ohm Max
  • Operating Temperature: -40°C ~ 125°C
  • Frequency Self-Resonant: 1MHz
  • Package: Nonstandard
  • Seated Height: 0.394" (10.00mm)
  • Current Rating: 900mA
  • Inductance Frequency: 1kHz
