Same model may have multiple batches, images only for reference.

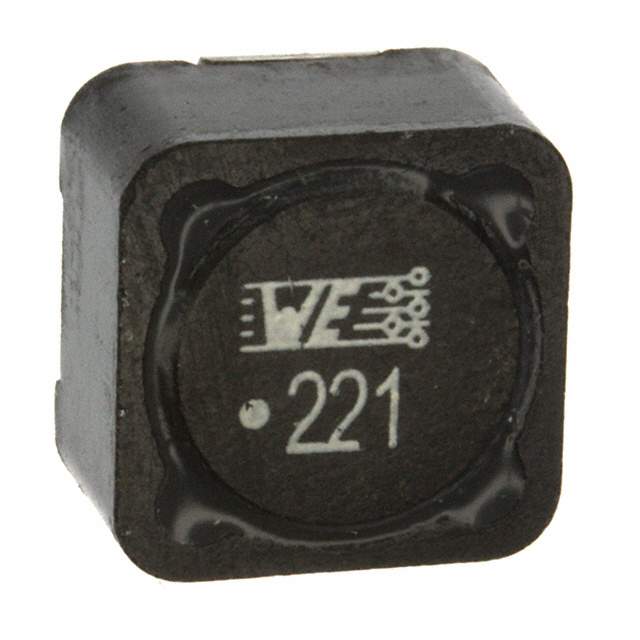

744770222 Real Image
Same model may have multiple batches, images only for reference.

744770222

Part No 744770222
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 220UH 1.3A 390MOHM SMD
Datasheet
744770222 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-PD
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 220 µH
Tolerance ±20%
Current Rating (Amps) 1.3 A
Current - Saturation (Isat) 1.49A
Shielding Shielded
DC Resistance (DCR) 390mOhm Max
Frequency - Self Resonant 3.8MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) 0.315" (8.00mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857526-744770222
Ultra Librarian 3D Model Ultra Librarian 744770222 CAD Model

Description

The WE-PD series from Wurth Electronics Inc is a fixed inductor with a drum core, wirewound construction.

  • Shielding: Shielded
  • Package: Tape & reel
  • Size: 0.472" L x 0.472" W (12.00mm x 12.00mm)
  • Height: 0.315" (8.00mm)
  • Inductance: 220 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 390mOhm
  • Current Rating: 1.3A
  • Operating Temperature: -40°C to 125°C
  • Mounting Type: Surface Mount
  • Core: Ferrite
