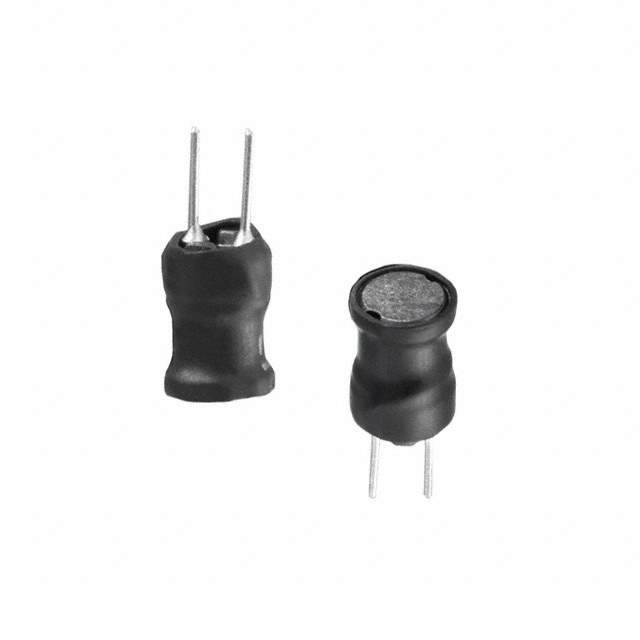

7447462100 Real Image
Same model may have multiple batches, images only for reference.

7447462100

Part No 7447462100
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 10UH 2.5A 80 MOHM TH
Datasheet
7447462100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-TI
Package Bulk
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 2.5 A
Current - Saturation (Isat) 2.6A
Shielding Unshielded
DC Resistance (DCR) 80mOhm Max
Frequency - Self Resonant 28MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Size / Dimension 0.236" Dia (6.00mm)
Height - Seated (Max) 0.335" (8.50mm)
Standard Package 400 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 857471-7447462100
Ultra Librarian 3D Model Ultra Librarian 7447462100 CAD Model

Description

The WE-TI series from Wurth Electronics Inc is a range of drum core, wirewound fixed inductors designed for various electronic applications.

  • Win Source Part Number: 857471-7447462100
  • Shielding: Unshielded
  • Size: 0.236" Dia (6.00mm)
  • Inductance: 10 µH
  • Maximum Seated Height: 0.335" (8.50mm)
  • Mounting Type: Through-hole
  • Package: Radial, vertical cylinder
  • DC Resistance (DCR): 80mOhm Max
  • Current Rating: 2.5 A
  • Operating Temperature: -40°C to 125°C
  • Core Material: Ferrite
  • Self-Resonant Frequency: 28MHz
  • Packaging: Bulk
  • Standard Package: 400 pcs
