Same model may have multiple batches, images only for reference.

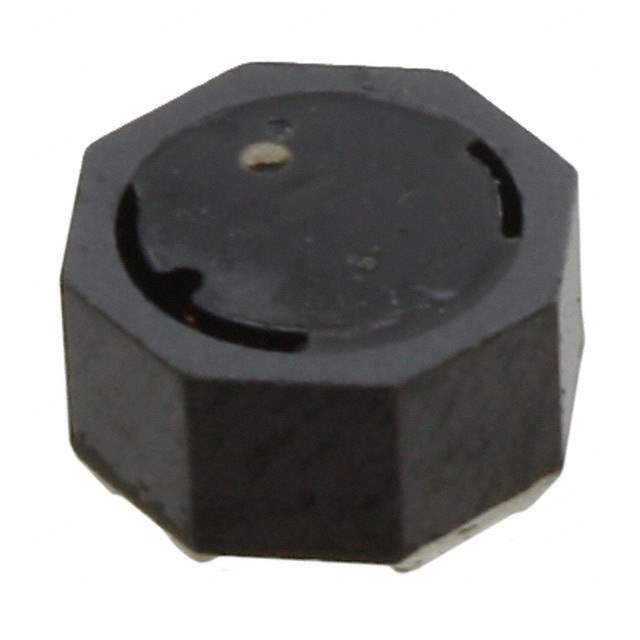

744071150 Real Image
Same model may have multiple batches, images only for reference.

744071150

Part No 744071150
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 15UH 2.8A 55 MOHM SMD
Datasheet
744071150 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-TPC
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 15 µH
Tolerance ±30%
Current Rating (Amps) 2.8 A
Current - Saturation (Isat) 2.3A
Shielding Shielded
DC Resistance (DCR) 55mOhm Max
Frequency - Self Resonant 20MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max) 0.181" (4.60mm)
Standard Package 300 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 857275-744071150
Ultra Librarian 3D Model Ultra Librarian 744071150 CAD Model

Description

The WE-TPC series from Wurth Electronics Inc is a shielded drum core, wirewound inductor designed for various electronic applications.

  • Size: 0.315" L x 0.315" W (8.00mm x 8.00mm)
  • Inductance: 15 µH
  • Tolerance: ±30%
  • Maximum Seated Height: 0.181" (4.60mm)
  • DC Resistance (DCR): 55mOhm
  • Operating Temperature: -40°C to 125°C
  • Mounting Type: Surface Mount
  • Package: Nonstandard
  • Shielding: Shielded
  • Material: Ferrite
  • Current Rating: 2.8 A
  • Saturation Current (Isat): 2.3A
