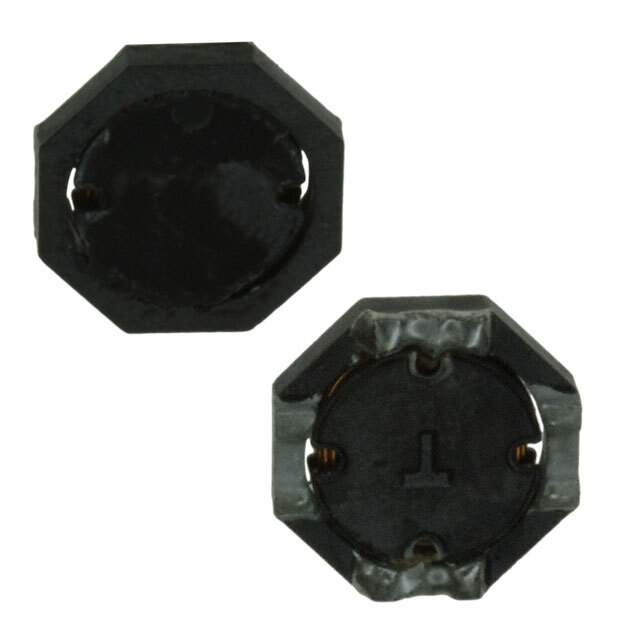

Same model may have multiple batches, images only for reference.

7440700033

Name: 7440700033
Brand: Wurth Electronics Inc
SKU: 1327682
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	7440700033
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 3.3UH 3.2A 36 MOHM SMD / 3.3 µH Shielded Drum Core, Wirewound Inductor 3.2 A 36mOhm Max Nonstandard
Datasheet	7440700033 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Würth Elektronik
Packaging	Reel - TR
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	3.3 µH
Tolerance	±30%
Current Rating (Amps)	3.2 A
Current - Saturation (Isat)	2.55A
Shielding	Shielded
DC Resistance (DCR)	36mOhm Max
Frequency - Self Resonant	80MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Size / Dimension	0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max)	0.079" (2.00mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	732-1876-1,732-1876-2,732-1876-6
Standard Package	550
Win Source Part Number	1327682-7440700033
Ultra Librarian 3D Model	Ultra Librarian 7440700033 CAD Model

Alternative Products

Description

The Würth Elektronik 1327682-7440700033 is a high-quality electronic component that is designed for use in fixed inductors.

Packaging: Reel - TR
Core Type: Drum core, wirewound
Shielding: Shielded
Size/Dimension: 0.315" L x 0.315" W (8.00mm x 8.00mm)
Inductance: 3.3 µH
Height Seated (max): 0.079" (2.00mm)
Standard Package: 550
Mounting Style: Surface Mount
Tolerance: ±30%
Material-Core: Ferrite
Current Rating (amps): 3.2 A
Inductance Frequency-Test @: 100 kHz
