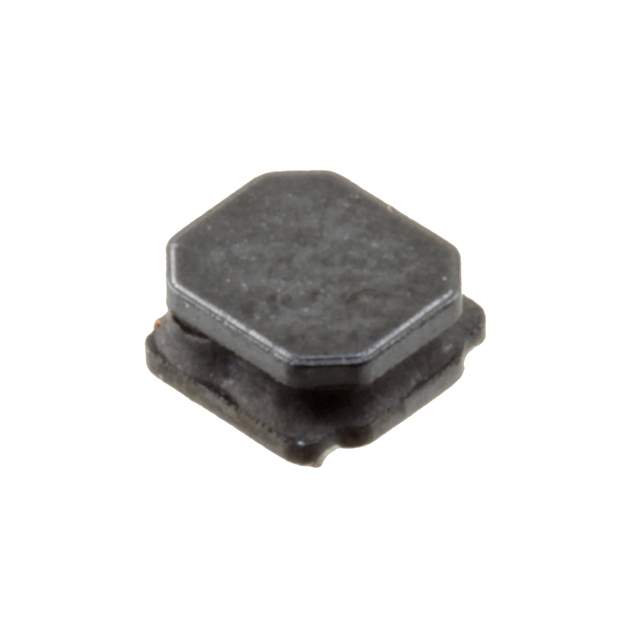

74404032022 Real Image
Same model may have multiple batches, images only for reference.

74404032022

Part No 74404032022
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 2.2UH 1.8A 50 MOHM SMD
Datasheet
74404032022 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-LQS
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 1.8 A
Current - Saturation (Isat) 1.7A
Shielding Semi-Shielded
DC Resistance (DCR) 50mOhm
Frequency - Self Resonant 75MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 3015
Size / Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) 0.059" (1.50mm)
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 845483-74404032022
Ultra Librarian 3D Model Ultra Librarian 74404032022 CAD Model

Description

The WE-LQS series from Wurth Electronics Inc is a semi-shielded drum core, wirewound inductor.

  • Core Material: Ferrite
  • Type: Drum Core
  • Material - Core: Ferrite
  • Inductance: 2.2 μH
  • Current Rating: 1.8 A
  • DC Resistance (DCR): 50mOhm
  • Shielding: Semi-Shielded
  • Size / Dimension: 0.118" L x 0.118" W (3.00mm x 3.00mm)
  • Height - Seated (Max): 0.059" (1.50mm)
  • Mounting Type: Surface Mount
  • Package / Case: Nonstandard
  • Temperature Range: -40°C ~ 125°C
  • Rating: AEC-Q200
  • Self Resonant Frequency: 75MHz
  • Packaging: Tape & Reel (TR)
  • Standard Package: 2000 pcs
  • Series: WE-LQS
  • Manufacturer: Wurth Electronics Inc
