Part No 1779970000
Manufacturer Weidmuller
Catalog Headers, Plugs and Sockets

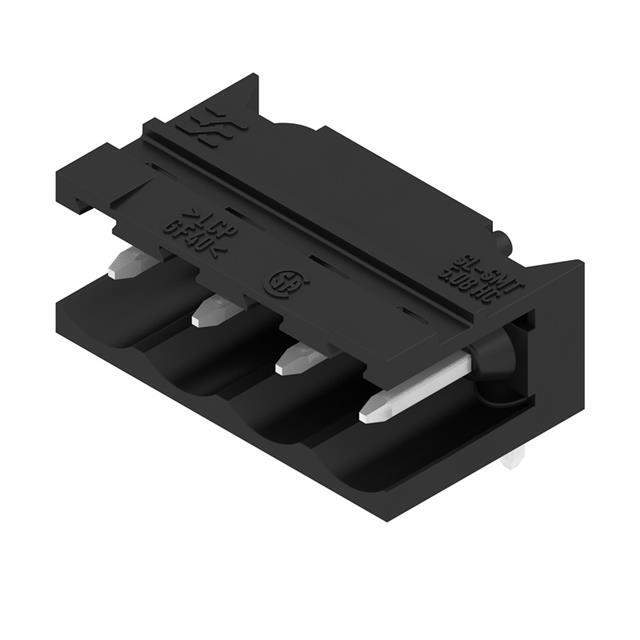

Description TERM BLOCK HDR 4POS 90DEG 5.08MM / 4 Position Terminal Block Header, Male Pins, Shrouded (2 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer Weidmüller
Packaging Bulk
Type Header, Male Pins, Shrouded (2 Side)
Number of Positions 4
Positions Per Level 4
Number of Levels 1
Pitch 0.200" (5.08mm)
Header Orientation 90°, Right Angle
Termination Style Solder
Mounting Through Hole
Current - IEC 27.5A
Voltage - IEC 400 V
Current - UL 18.5 A
Voltage - UL 300 V
Color Black
Temperature Range - Operating -50°C ~ 100°C
Contact Mating Finish Tin
Material Flammability Rating UL94 V-0
Contact Material Copper Alloy
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Contact Tail Length 0.126" (3.20mm)
Insulation Height 0.335" (8.51mm)
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number SL-SMT 5.08HC/04/90 3.2SN BKBX
Standard Package 100
Win Source Part Number 1332229-1779970000
Ultra Librarian 3D Model Ultra Librarian 1779970000 CAD Model

Description

The 1332229-1779970000 is a shrouded header with male pins that comes with 4 positions and 4 positions per level, manufactured by Weidmüller.

  • Positions: 4
  • Positions per Level: 4
  • Pitch: 0.200" (5.08mm)
  • Angle: Right-angled @ 90°
  • Termination Style: Solder
  • Current Rating: 27.5A
  • Voltage Rating (IEC): 400V
  • Current Rating (UL): 18.5A
  • Voltage Rating (UL): 300V
  • Contact Material: Copper alloy with tin plating
  • Housing Material: Liquid crystal polymer (LCP) and glass-filled
  • RoHS Compliant: Yes
  • Standard Package: 100
