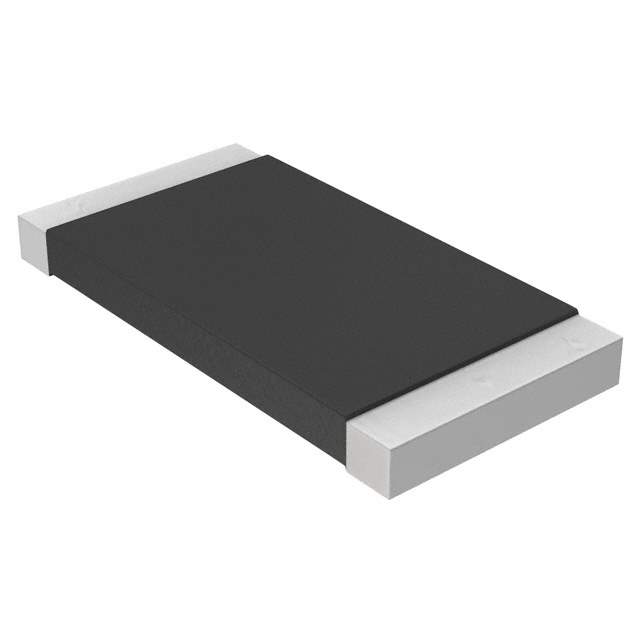

Same model may have multiple batches, images only for reference.

WSL2512R0330FEA

Name: WSL2512R0330FEA
Brand: Vishay
SKU: 403335
Availability: InStock
Rating: 4.84 (225 reviews)

Get a Quote

Part No	WSL2512R0330FEA
Manufacturer	Vishay
Catalog	Chip Resistor - Surface Mount
Description	Res Metal Strip 2512 0.033 Ohm 1% 1W ±75ppm/°C Sulfur Resistant Pad SMD Automotive T/R / RES SMD 0.033 OHM 1% 1W 2512
Datasheet	WSL2512R0330FEA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Resistors
Manufacturer	Vishay
Packaging	Reel - TR
Status	Active
Resistance (Ohms)	0.033
Tolerance	±1%
Power (Watts)	1W
Composition	Metal Element
Features	Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Temperature Coefficient	±75ppm/°C
Temperature Range - Operating	-65°C to 170°C
Case / Package	2512
Height - Seated (Max)	0.035" (0.89mm)
Number of Terminations	2
Win Source Part Number	036539-WSL2512R0330FEA
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Limited
Family Name	WSL
Introduction Date	April 19, 2007
ECCN	EAR99
Country of Origin	Israel, Mexico, United States of America
Halogen Free	Compliant
Estimated EOL Date	2028
Ultra Librarian 3D Model	Ultra Librarian WSL2512R0330FEA CAD Model

Description

The Vishay 036539-WSL2512R0330FEA is a 1W metal element resistor with a resistance of 0.033 Ohms and a tolerance of ±1%.

Power: 1W
Resistance: 0.033 Ohms
Tolerance: ±1%
Series: WSL series
Suitable for: current sensing and pulse-withstanding applications
Seated Height: 0.035" (0.89mm)
Terminations: 2
Package: reel
Temperature Range: -65°C to 170°C
Product Status: active
Popularity: high
Supply and Demand Status: limited
AEC-Q200 Automotive Standard Compliant: Yes
RoHS Compliant: No
