Same model may have multiple batches, images only for reference.

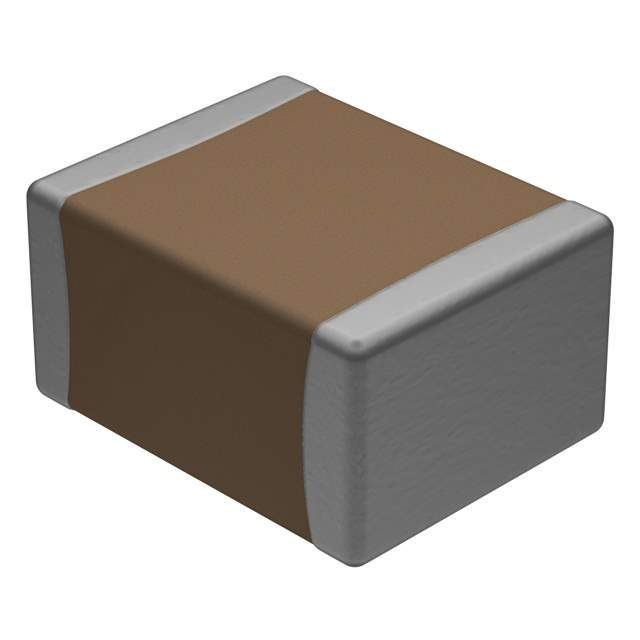

VJ1210A470JXGAT5ZL Real Image
Same model may have multiple batches, images only for reference.

VJ1210A470JXGAT5ZL

Part No VJ1210A470JXGAT5ZL
Manufacturer Vishay
Catalog Ceramic Capacitors
Description 1210 47 pF 1 kV ±5 % Tolerance C0G/NP0 SMT Multilayer Ceramic Chip Capacitor
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Capacitance 47 pF
Case / Package 1210
Case Code (Imperial) 1210
Case Code (Metric) 3225
Dielectric C0G
Height 1.7 mm
Length 3.2004 mm
Max Operating Temperature 125 °C
Min Operating Temperature -55 °C
Mount Surface Mount
RoHS Compliant
Termination SMD/SMT
Thickness 1.7018 mm
Tolerance 5 %
Voltage Rating 1 kV
Voltage Rating (DC) 1 kV
Weight 15.989131 mg
Width 2.4892 mm
Win Source Part Number 1205145-VJ1210A470JXGAT5ZL
Categories Ceramic Capacitors
Manufacturer Vishay
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian VJ1210A470JXGAT5ZL CAD Model

Description

This Vishay ceramic capacitor is a reliable electronic component that comes with a capacitance of 47 pF manufactured by Vishay.

  • Capacitance: 47 pF
  • Tolerance: 5%
  • Voltage Rating: 1 kV
  • Temperature Range: -55°C to 125°C
  • Mounting Type: surface-mounted
  • Packaging: Digi-Reel™
  • Case/Package: 1210
  • Case Code: 3225
  • Dimensions: 3.2004 mm x 2.4892 mm x 1.7018 mm (L x W x H)
  • Weight: 15.989131 mg
  • Supply and Demand Status: limited
