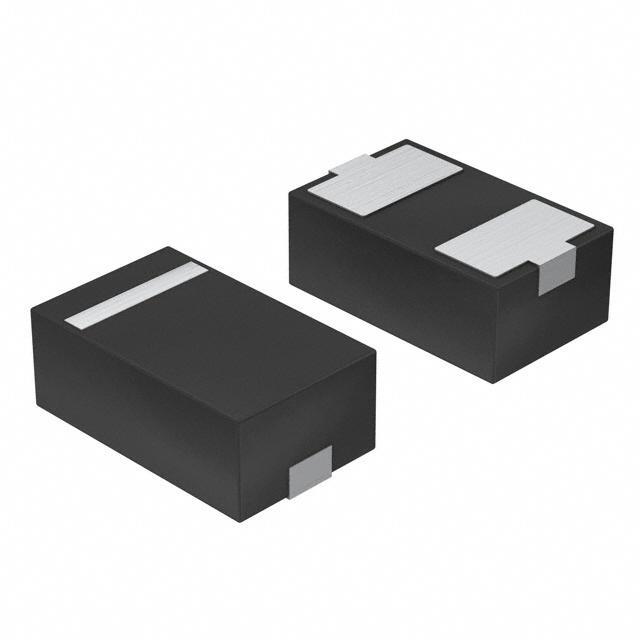

VCUT0505B-HD1-GS08

Name: VCUT0505B-HD1-GS08
Brand: Vishay
SKU: 397703
Availability: InStock
Rating: 4.85 (90 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	VCUT0505B-HD1-GS08
Manufacturer	Vishay
Catalog	TVS - Diodes
Description	TVS DIODE 5.5VWM 16VC LLP10062L / TVS Diode Single Uni-Dir 5V 56W 2-Pin LLP
Datasheet	VCUT0505B-HD1-GS08 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Vishay
Packaging	Reel - TR
Status	Active
Type	Zener
Bidirectional Channels	1
STAND-OFF Voltage (Vwm)	5.5V (Max)
Minimum Breakdown Voltage	7V
Max Clamping Voltage	16V
Peak Pulse Current(Ippm)	3.5A (8/20μs)
Power Dissipation - Pd	56W
Applications	General Purpose
Capacitance @ Frequency	18pF @ 1MHz
Temperature Range - Operating	-40°C to 125°C (TJ)
Mounting	SMD (SMT)
Case / Package	LLP1006-2L
Win Source Part Number	036238-VCUT0505B-HD1-GS08
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Limited
Application Field	Used in Industrial
Family Name	VCUT0505B-HD1
Introduction Date	April 17, 2008
ECCN	EAR99
Halogen Free	Compliant
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian VCUT0505B-HD1-GS08 CAD Model

Alternative Products

Description

The VCUT0505B-HD1-GS08 is a zener type bidirectional channel electronic component manufactured by Vishay.

GPTDescription: It has a capacitance of 18pF @ 1MHz, a stand-off voltage of 5.5V (Max) and a minimum breakdown voltage of 7V.
GPTDescription: This product is part of the Circuit Protection category and is currently active with a high popularity.
GPTDescription: It is commonly used in industrial applications and is halogen-free compliant.
