Same model may have multiple batches, images only for reference.

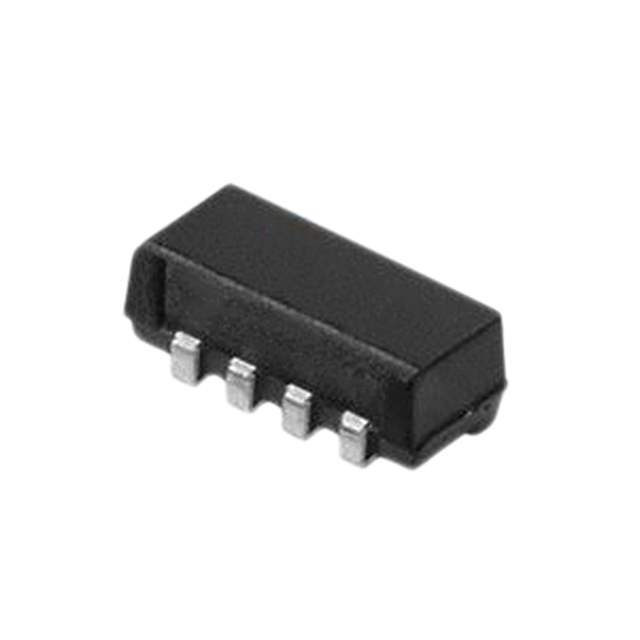

TSOP75336WTR Real Image
Same model may have multiple batches, images only for reference.

TSOP75336WTR

Part No TSOP75336WTR
Manufacturer Vishay
Catalog Optical Sensors - Photo Detectors - Remote Receiver
Description MOD IR RCVR 36KHZ SIDE VIEW
Datasheet
TSOP75336WTR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay
Packaging Reel - TR
Status Active
Sensing Distance 30m
Carrier Frequency 36.0kHz
Supply Voltage - Operating 2.5 V to 5.5 V
Operating Supply Current 350μA
Orientation Side View
Mounting SMD (SMT)
Temperature Range - Operating -25°C to 85°C (TA)
Win Source Part Number 057174-TSOP75336WTR
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2,300
Ultra Librarian 3D Model Ultra Librarian TSOP75336WTR CAD Model

Description

The Vishay TSOP75336WTR is a side view SMD (SMT) sensor/transducer.

  • View Orientation: Side view
  • Mounting Type: SMD (SMT)
  • Sensing Distance: 30m
  • Operating Temperature: -25°C to 85°C (TA)
  • Operating Supply Voltage: 2.5 V to 5.5 V
  • Operating Supply Current: 350μA
  • Carrier Frequency: 36.0kHz
  • Packaging: Reel - TR
  • Quantity per Package: 2,300 pieces
  • Status: Active
  • Popularity: Medium
