Same model may have multiple batches, images only for reference.

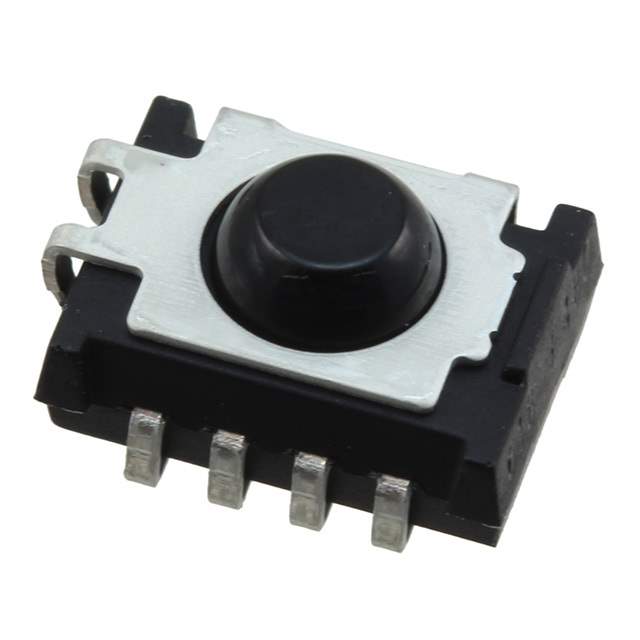

TSOP6138TT Real Image
Same model may have multiple batches, images only for reference.

TSOP6138TT

Part No TSOP6138TT
Manufacturer Vishay
Catalog Optical Sensors - Photo Detectors - Remote Receiver
Description SENSOR REMOTE REC 38.0KHZ 40M  /  Remote Receiver Sensor 38.0kHz 40m Surface Mount
Datasheet
TSOP6138TT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Photo Detectors - Remote Receiver
Mfr Vishay Semiconductor Opto Division
Package Tape & Reel
Sensing Distance 40m
B.P.F. Center Frequency 38.0kHz
Voltage - Supply 2.5 V ~ 5.5 V
Current - Supply 700 µA
Orientation Side or Top View
Mounting SMD (SMT)
Temperature Range - Operating -25°C ~ 85°C (TA)
Base Product Number TSOP6138
Other Names TSOP6138TTCT,TSOP6138TTDKR,TSOP6138TT,Q5384183,TSOP6138TTTR
Standard Package 1,190
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.1050
Win Source Part Number 1234986-TSOP6138TT
Ultra Librarian 3D Model Ultra Librarian TSOP6138TT CAD Model

Description

The TSOP6138TT is an optical sensor that is widely used in remote receiver applications.

  • Product Name: TSOP6138TT
  • Sensing Distance: Up to 40m
  • B.P.F. Center Frequency: 38.0kHz
  • Operating Voltage: 2.5 V to 5.5 V
  • Current Supply: 700 µA
  • Package: Tape and Reel
  • Orientation: Either side or top view
  • Manufacturer: Vishay Semiconductor Opto Division
