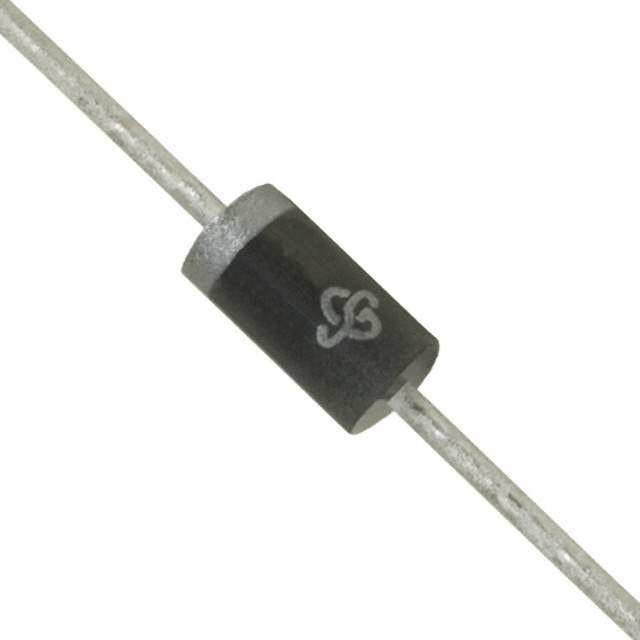

SA33A/54 Real Image
Same model may have multiple batches, images only for reference.

SA33A/54

Part No SA33A/54
Manufacturer Vishay
Catalog TVS - Diodes
Datasheet
SA33A/54 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Vishay General Semiconductor - Diodes Division
Series TransZorb®
Package Tape & Reel (TR)
Product Status Obsolete
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 33V
Voltage - Breakdown (Min) 36.7V
Voltage - Clamping (Max) @ Ipp 53.3V
Current - Peak Pulse (10/1000µs) 9.4A
Power - Peak Pulse 500W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case DO-204AC, DO-15, Axial
Supplier Device Package DO-204AC (DO-15)
Base Product Number SA33
Other Names SA33AGICT,SA33AGICT,SA33A TR,SA33A/54GICT,SA33AGITR,SA33A/54GITR,SA33A/4GITR,SA33AGITR,SA33A/4GICT,SA33A/4GITR,SA33A/4,SA33A/4GICT
Standard Package 4,000
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1294514-SA33A/54
Ultra Librarian 3D Model Ultra Librarian SA33A/54 CAD Model

Description

The SA33A/54 is a TransZorb™ TVS diode designed for general-purpose applications.

  • Reverse Standoff Voltage: 33V
  • Breakdown Voltage: 36.7V
  • Maximum Clamping Voltage: 53.3V @ 500W peak pulse power
  • Peak Pulse Current: 9.4A @ 10/1000μs
  • Package: DO-204AC (DO-15) axial
  • Mounting: Through-Hole
  • Temperature Range: -55°C to 175°C
  • Packaging: Tape and Reel
  • Standard Package Quantity: 4,000
  • Type: Unidirectional
  • Feature: Power Line Protection
