Same model may have multiple batches, images only for reference.

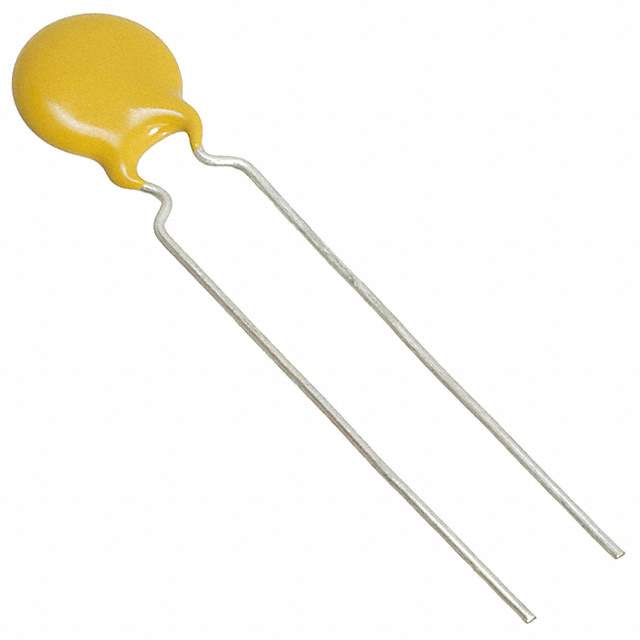

S470K25SL0N6TJ6R Real Image
Same model may have multiple batches, images only for reference.

S470K25SL0N6TJ6R

Part No S470K25SL0N6TJ6R
Manufacturer Vishay
Catalog Ceramic Capacitors
Description CAP CER 47PF 1KV SL RADIAL / 47 pF ±10% 1000V (1kV) Ceramic Capacitor SL Radial, Disc
Datasheet
S470K25SL0N6TJ6R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series S
Package Tape & Reel (TR)
Capacitance 47 pF
Tolerance ±10%
Voltage - Rated 1000V (1kV)
Temperature Coefficient SL
Temperature Range - Operating -55°C ~ 125°C
Applications General Purpose
Mounting Type Through Hole
Package / Case Radial, Disc
Dimension 0.256" Dia (6.50mm)
Height - Seated (Max) 0.413" (10.50mm)
Lead Spacing 0.197" (5.00mm)
Lead Style Straight
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.23.0060
Standard Package 2,000
Win Source Part Number 1123672-S470K25SL0N6TJ6R
Ultra Librarian 3D Model Ultra Librarian S470K25SL0N6TJ6R CAD Model

Description

The Vishay S470K25SL0N6TJ6R is a ceramic capacitor with a capacitance of 47 pF and a voltage rating of 1000V.

  • Capacitance: 47 pF
  • Voltage Rating: 1000V
  • Tolerance: ±10%
  • Temperature Coefficient: SL
  • Series: S
  • Application: General Purpose
  • Packaging: Tape and Reel
  • Standard Package: 2,000
  • Lead Spacing: 0.197" (5.00mm)
  • Lead Style: Straight
  • Temperature Range: -55°C to 125°C
  • Dimension: 0.256" Dia (6.50mm)
  • MSL Level: Not Applicable
  • REACH Status: Unaffected
  • HTSUS: 8532.23.0060
