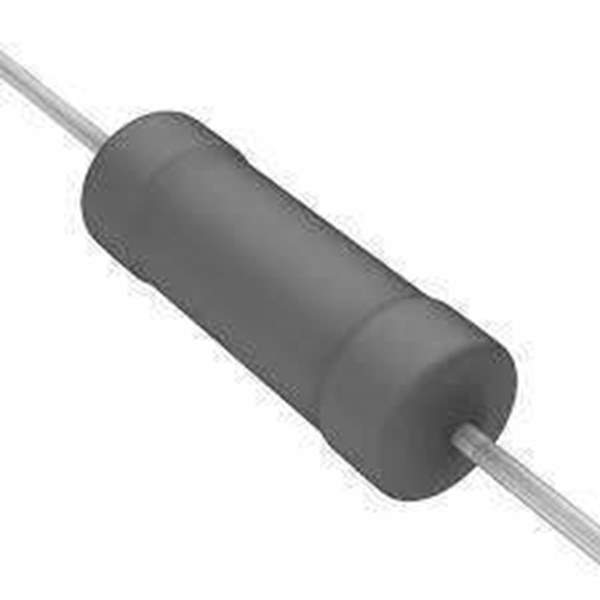

Same model may have multiple batches, images only for reference.

PAC300005609FAC000

Name: PAC300005609FAC000
Brand: Vishay
SKU: WS1307052
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PAC300005609FAC000
Manufacturer	Vishay
Catalog	Through Hole Resistors
Description	RES 56 OHM 3W 1% AXIAL
Datasheet	PAC300005609FAC000 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Win Source Part Number	WS1307052-PAC300005609FAC000
Manufacturer	Vishay
Category	Resistors-Through Hole Resistors
Packaging	Cut Tape (CT) Tape & Box (TB)
Part Status	Active
Resistance (Ohms)	56 Ohms
Tolerance	±1%
Power (Watts)	3W
Composition	Wirewound
Temperature Coefficient	±100ppm/°C
Operating Temperature	-55°C ~ 275°C
Ultra Librarian 3D Model	Ultra Librarian PAC300005609FAC000 CAD Model

Alternative Products

Description

The resistor element is a resistive wire which is wound in a single layer on a ceramic rod. Metal caps are pressed over the ends of the rod. The ends of the resistance wire and the leads are connected to the caps by welding. Tinned copper-clad iron leads with poor heat conductivity are employed permitting the use of relatively short leads to obtain stable mounting without overheating the solder joint.
