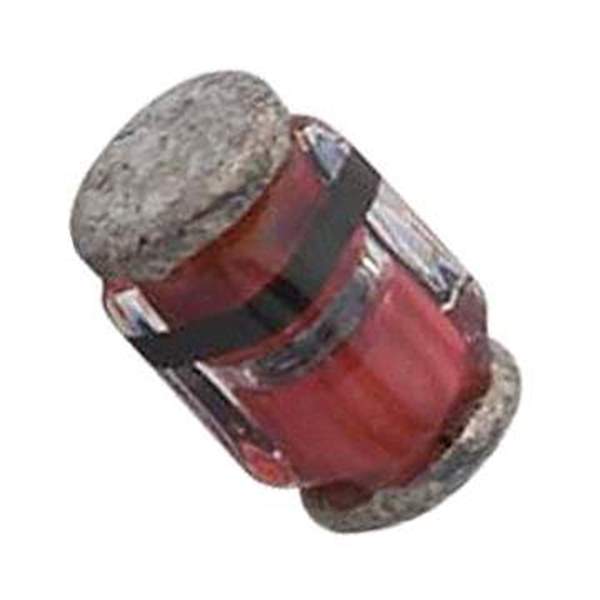

MCL103A-TR Real Image
Same model may have multiple batches, images only for reference.

MCL103A-TR

Part No MCL103A-TR
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description Rectifier Diode Small Signal Schottky 40V 0.2A 10ns Automotive 2-Pin MicroMELF T/R / DIODE SCHOTTKY 40V 200MA MICMELF
Datasheet
MCL103A-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40V
Current - Average Rectified (Io) 200mA
Voltage - Forward (Vf) (Max) @ If 600mV @ 200mA
Reverse Recovery Time (trr) 10ns
Current - Reverse Leakage @ Vr 5μA @ 10V
Capacitance @ Vr, F 50pF @ 0V, 1MHz
Mounting SMD (SMT)
Case / Package MicroMELF
Operating Temperature - Junction 125°C (Max)
Win Source Part Number 023025-MCL103A-TR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name MCL103A
Introduction Date June 28, 2001
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian MCL103A-TR CAD Model

Description

The Vishay 023025-MCL103A-TR is a Schottky diode with a maximum DC reverse voltage of 40V and an average rectified current of 200mA.

  • Maximum DC Reverse Voltage: 40V
  • Average Rectified Current: 200mA
  • Forward Voltage: 600mV @ 200mA
  • Reverse Recovery Time: 10ns
  • Package: MicroMELF
  • Mounting: Surface-mounting
  • Operating Temperature Range: Up to 125°C
  • Applications: Voltage clamping, freewheeling, and polarity protection
  • Family: MCL103A
  • Alternative Parts: MCL103A-GS08, MCL103A-TR3, and MCL103A-GS18
