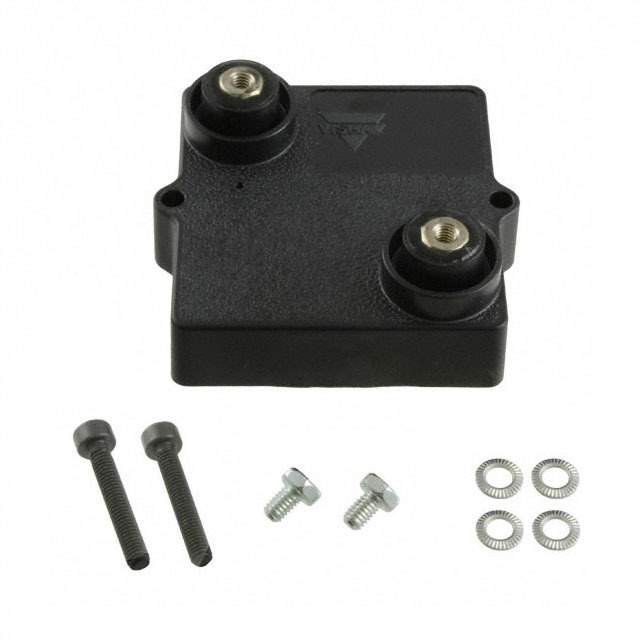

LPS0800H1000JB Real Image
Same model may have multiple batches, images only for reference.

LPS0800H1000JB

Part No LPS0800H1000JB
Manufacturer Vishay
Catalog Chassis Mount Resistors
Description RES CHAS MNT 100 OHM 5% 800W
Datasheet
LPS0800H1000JB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Vishay
Packaging Bulk
Status Active
Resistance (Ohms) 100
Tolerance ±5%
Power (Watts) 800W
Composition Thick Film
Temperature Coefficient ±150ppm/°C
Temperature Range - Operating -55°C to 175°C
Features Non-Inductive
Mounting Feature Flanges
Height - Seated (Max) 1.055" (26.80mm)
Lead Style M4 Threaded
Dimension Box
Win Source Part Number 206620-LPS0800H1000JB
Ultra Librarian 3D Model Ultra Librarian LPS0800H1000JB CAD Model

Description

The Vishay LPS0800H1000JB is a thick film resistor with the following specifications:

  • Resistance: 100 ohms
  • Tolerance: ±5%
  • Power Rating: 800W
  • Operating Temperature Range: -55°C to 175°C
  • Mounting Style: M4 threaded lead style and flanges
  • Non-inductive
  • Temperature Coefficient: ±150ppm/°C
  • Package: Bulk
  • Dimension: Box
  • Height: 1.055" (26.80mm)
