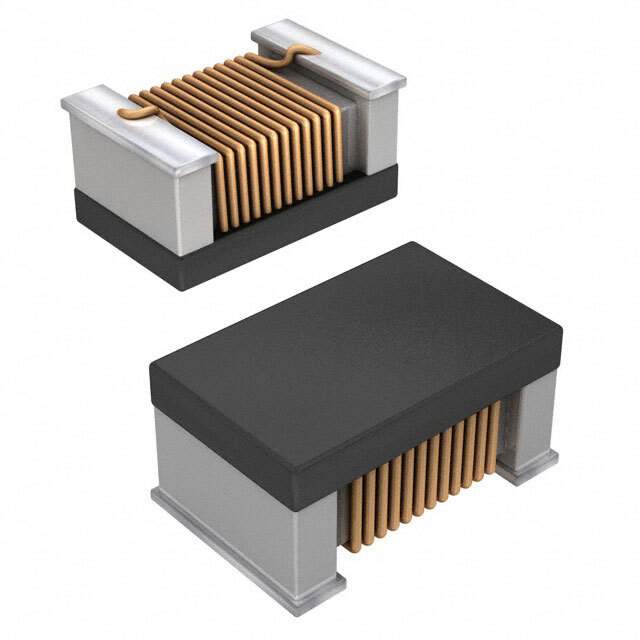

IMC0805ERR56J01 Real Image
Same model may have multiple batches, images only for reference.

IMC0805ERR56J01

Part No IMC0805ERR56J01
Manufacturer Vishay
Catalog Fixed Inductors
Description FIXED IND 560NH 450MA 1.1OHM SMD / 560 nH Unshielded Drum Core, Wirewound Inductor 450 mA 1.1Ohm Max 0805 (2012 Metric)
Datasheet
IMC0805ERR56J01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Vishay Dale
Series IMC-0805-01
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 560 nH
Tolerance ±5%
Current Rating (Amps) 450 mA
Shielding Unshielded
DC Resistance (DCR) 1.1Ohm Max
Q @ Freq 45 @ 100MHz
Frequency - Self Resonant 340MHz
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 25.2 MHz
Mounting SMD (SMT)
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805 (2012 Metric)
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.055" (1.40mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Standard Package 2,000
Win Source Part Number 986654-IMC0805ERR56J01
Ultra Librarian 3D Model Ultra Librarian IMC0805ERR56J01 CAD Model

Description

The Vishay 986654-IMC0805ERR56J01 is a fixed inductor that has an inductance of 560nH and a tolerance of ±5%. It is designed for use in a variety of applications and features a temperature range of -40°C to 105°C. The inductor is housed in an 0805 (2012 Metric) package and has a maximum height of 0.055" (1.40mm). It is suitable for use in inductors, coils, chokes applications and has an HTSUS of 8504.50.8000.
