Same model may have multiple batches, images only for reference.

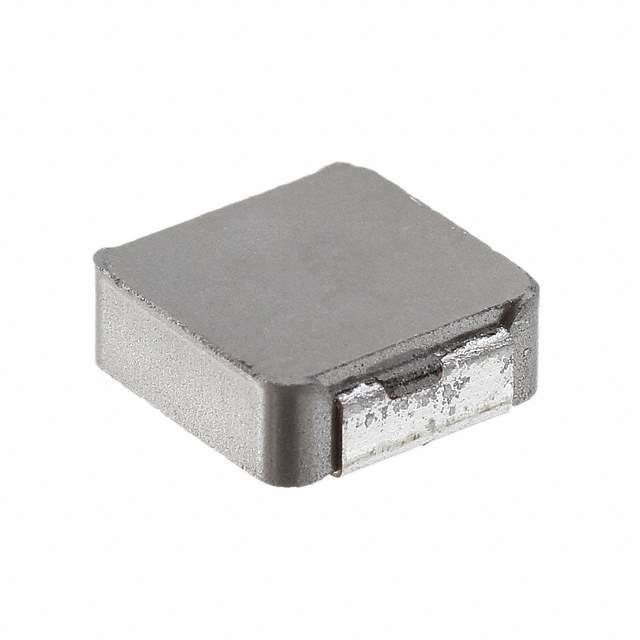

IHLP3232CZER220M11 Real Image
Same model may have multiple batches, images only for reference.

IHLP3232CZER220M11

Part No IHLP3232CZER220M11
Manufacturer Vishay
Catalog Fixed Inductors
Description FIXED IND 22UH 3.6A 132 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Vishay Dale
Packaging Reel
Type Molded
Inductance 22μH
Tolerance ±20%
Current Rating (Amps) 3.6A
Current - Saturation 2.8A
Shielding Shielded
DC Resistance (DCR) 132mOhm Max
Frequency - Self Resonant 7.7MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.340" L x 0.322" W (8.64mm x 8.18mm)
Height - Seated (Maximum) 0.118" (3.00mm)
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 813363-IHLP3232CZER220M11
Ultra Librarian 3D Model Ultra Librarian IHLP3232CZER220M11 CAD Model

Description

The Vishay Dale IHLP3232CZER220M11 is a molded shielded inductor manufactured by Vishay Dale.

  • Inductance: 22μH
  • Tolerance: ±20%
  • Mounting: SMD
  • Saturation Current: 2.8A
  • Self-Resonant Frequency: 7.7MHz
  • DC Resistance: 132mOhm (Max)
  • Temperature Range: -55°C to 125°C
  • Dimensions: 0.340" L x 0.322" W (8.64mm x 8.18mm)
  • Height: 0.118" (3.00mm)
  • Manufacturer Pack Quantity: 1,000
  • MSL Level: 1 (Unlimited)
  • Current Rating: 3.6A
  • Inductance Frequency Test: 100kHz
