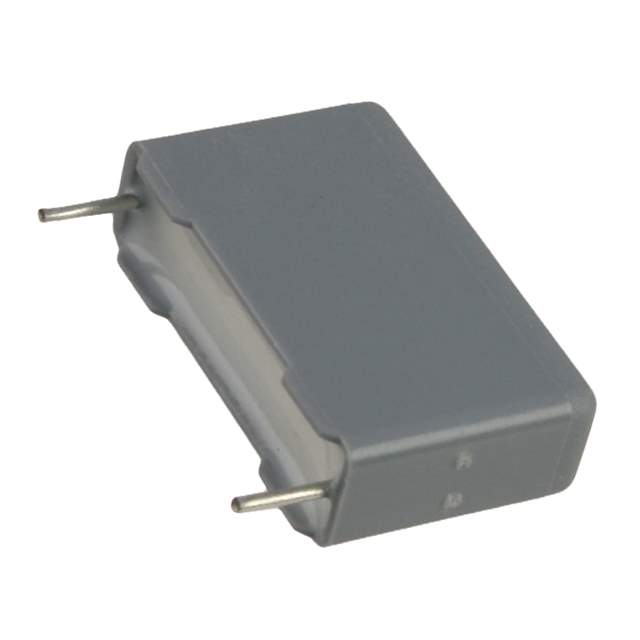

BFC233863102 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series MKP338 6
Package Bulk
Capacitance 1000 pF
Tolerance ±10%
Voltage Rating - AC 300V
Voltage Rating - DC 1000V (1kV)
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Dimension 0.394" L x 0.157" W (10.00mm x 4.00mm)
Height - Seated (Max) 0.354" (9.00mm)
Termination PC Pins
Lead Spacing 0.295" (7.50mm)
Applications Automotive; EMI, RFI Suppression
Ratings AEC-Q200, Y2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.25.0020
Other Names 222233863102
Standard Package 1,500
Win Source Part Number 1032109-BFC233863102
Ultra Librarian 3D Model Ultra Librarian BFC233863102 CAD Model

Description

The MKP338 6 series film capacitor is designed for automotive and EMI/RFI suppression applications.

  • Manufacturer: Vishay Beyschlag/Draloric/BC Components
  • Capacitance: 1000 pF
  • Tolerance: ±10%
  • Voltage Rating (AC): 300V
  • Voltage Rating (DC): 1000V (1kV)
  • Height: 0.354" (9.00mm)
  • Dimension: 0.394" L x 0.157" W (10.00mm x 4.00mm)
  • Package: Radial
  • Termination: Through hole
  • Lead Spacing: 0.295" (7.50mm)
